Detailed Listing

Up ]



This freight car roster data was compiled from 39 Official Railway Equipment Registers spanning 1901-1993.


This is the expanded version of the data; go here to see the abbreviated listing.

000 AHW 300 to 399   (100 cars)
ORER description: AAR Mech. Designation: XP
Dimensions: 50'-7'' IL x 9'-6'' IW x 10'-11'' IH Capacity: 5258 cu. ft.; 151300 lbs
Doors: 10'-0'' W x H
Comments: Built Pacific Car & Foundry 1976.10. Never on the Ahnapee & Western - these cars were assigned AHW reporting marks after the Fox Valley & Western purchase of the railroad. Originally Angelina & Neches River (ANR 300-399) 50' exterior post boxcars with 12' sliding doors. Rebuilt with 10-foot plug doors in 1992 and repainted, then restenciled for AHW 300-399 between early 1995 and 1997. The 1/97 ORER shows these cars on the FV&W roster as AHW 300-399 (98 cars). Later restenciled back to ANR 300-399. Black with white ANR lettering intact; the only change was white AHW reporting marks carefully stenciled on the car.
ORER car totals
& dates:
001 AHW 301 to 400   (100 cars)
ORER description: Box, Stl., Nailable Stl. Flr. AAR Mech. Designation: XM
Dimensions: 50'-6" IL x 9'-6" IW x 10'-7" IH Capacity: 5077 cu. ft.; 154000 lbs
Doors: 10'-0" W x 9'-10" H
Comments: Built FMC Corp. 1977.05. FMC plate B 5077 cu.ft. single door boxcar. Ex- Providence & Worcester (P&W 301-400) to AHW in 1980.06. To Bangor & Aroostook (BAR 5400-5499) in 1983; eventually remarked Maine Coast (MC) then Sidney and Lowe Railroad (SLGG 15400-15499). Many (all?) scrapped in 2008. Some cars were completely painted dark maroon/brown with simple white lettering; others had Providence and Worcester lettering patched over (similar to GBW 8000-8199).
ORER car totals
& dates:
0 (1/80); 100 (1/81); 100 (1/82); 100 (1/83); 100 (1/84); 100 (1/86); 0 (1/87);
Photos: 320   359
002 AHW 2000 to 2099   (100 cars)
ORER description: Box, Stl., Nailable Stl. Flr. AAR Mech. Designation: XM; XP (1/81)
Dimensions: 50'-6" IL x 9'-6" IW x 10'-7" IH Capacity: 5077 cu. ft.; 154000 lbs
Doors: 10'-0" W x 9'-11" H
Comments: Built FMC Corp. 1975.06 (lot 17736). FMC plate B 5077 cu.ft. single door boxcar. Ex- Hartford & Slocumb (H&S 2000-2099), to AHW 1978.04. #2013 and 2059 were destroyed prior to delivery to AHW. 75 cars reclassified as AAR type XP in 1981.06. 15 cars (2006, 2024, 2027, 2028, 2034, 2035, 2040, 2044, 2050, 2058, 2064, 2073, 2077, 2087, 2097) to Iowa Interstate 1986.05; 20 cars on Escanaba & Lake Superior RR by 1987. Orange with black lettering, Hartford and Slocomb lettering and SSI circular herald patched out in orange.
ORER car totals
& dates:
0 (1/77); 100 (7/78); 100 (1/79); 100 (1/80); 76 (1/81); 76 (1/82); 75 (1/83); 77 (1/84); 77 (1/86); 63 (1/87); 61 (1/88); 36 (1/89); 35 (1/90); 35 (4/91); 35 (1/92); 35 (7/93);
Photos: 2063

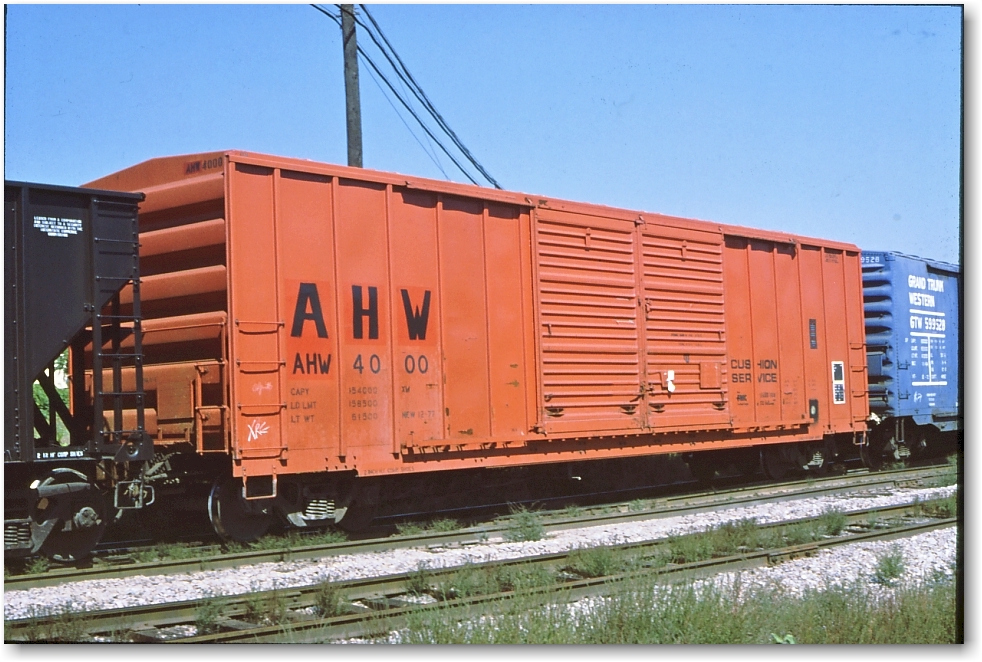

003 AHW 4000 to 4099   (73 cars)
ORER description: Box, Stl., Nailable Stl. Flr., Cush. Und. AAR Mech. Designation: XM
Dimensions: 50'-6" IL x 9'-6" IW x 10'-7" IH Capacity: 5077 cu. ft.; 154000 lbs
Doors: 16'-0" W x 9'-11" H
Comments: Built FMC Corp. 1977.12 - 1978.01 (lot 17866). FMC plate B 5077 cu.ft. double Youngstown door boxcar. Ex- Hartford & Slocumb (H&S 4000-4099), to AHW 1978.04. 25 cars to Crab Orchard & Egyptian (COER 4000-4096, ex AHW 4000, 4001, 4002, 4013, 4014, 4017, 4021, 4024, 4027, 4028, 4036, 4037, 4042, 4047, 4049, 4058, 4059, 4061, 4065, 4066, 4067, 4077, 4086, 4096, 4097) in 1984. Used for track storage loading in Green bay by 1987. 70 cars to McCloud River (MR 11100-11169) ca. 1987-1988; to Pee Dee River Railway (PDRR 1101-1157). Orange with black lettering; stylized 'CUSHION SERVICE' lettering.
ORER car totals
& dates:
0 (1/77); 100 (7/78); 100 (1/79); 100 (1/80); 72 (1/81); 72 (1/82); 72 (1/83); 73 (1/84); 45 (1/86); 45 (1/87); 45 (1/88); 0 (1/89);
Photos: 4000   4043   4054
004 AHW 4200 to 4299   (100 cars)
ORER description: Box, Stl. AAR Mech. Designation: XM
Dimensions: 50'-6" IL x 9'-6" IW x 11'-1" IH Capacity: 5355 cu. ft.; 154000 lbs
Doors: 10'-0" W x 10'-5" H
Comments: Ex-MT&W 4200-series. Bluish-green car body color with obvious paint marks where it was patched over.
ORER car totals
& dates:
0 (1/90); 98 (4/91); 98 (1/92); 97 (7/93);
005 AHW 5000 to 5010   (11 cars)
ORER description: Box, Stl. AAR Mech. Designation: XM
Dimensions: 50'-6" IL x 9'-6" IW x 10'-6" IH Capacity: 5037 cu. ft.; 154000 lbs
Doors: 10'-0" W x 9'-11" H
Comments: Typically loaded at Reed Lignin in Green Bay.
ORER car totals
& dates:
0 (1/83); 9 (1/84); 9 (1/86); 9 (1/87); 9 (1/88); 9 (1/89); 9 (1/90); 9 (4/91); 9 (1/92); 9 (7/93);
006 AHW 41620 to 41674   (?? cars)
ORER description: AAR Mech. Designation:
Dimensions: Capacity: 0 lbs
Comments: Built Pullman-Standard Car Manufacturing Co. 1976.04 to 1976.06 (lot 9832). Part of ex- RBOX 21000-215999
ORER car totals
& dates:
007 AHW 42000 to 42099   (?? cars)
ORER description: AAR Mech. Designation:
Dimensions: Capacity: 0 lbs
Comments: Built 1977.07.
ORER car totals
& dates:
008 AHW 105525   (1 car)
ORER description: Flat AAR Mech. Designation: FC
ORER Notes: TOFC/COFC standard deck, collapsible hitches capable of handling two 45' dry trailers with 36'' king pin spacing at either end lift on/lift off or end loading facilities using portable bridge plates provided by the carrier
Dimensions: 89'-4" IL x 9'-0" IW Capacity: 154000 lbs
Comments: Built Pullman-Standard Car Manufacturing Co. 1978.11 to 1979.12 (lot 1016). PW 105525 (1978.09.01) to SP 105525 (1978.11.01) to AHW 105525 (1981.09.23) to SOO 54844 (1983.02.17) to PW 105525 (1984.05.18) to AHW 105525 (1985.03.01). 70-ton flush deck flatcar. Handling capabilities: (2) 45' trailers (dry van w/ 36" King pin setting) or (2) 40' containers. Capacity: 151,000 lbs (4/84). To IATR 105525 in 1994. Likely painted oxide red, since that was the original color of PW 105525.
ORER car totals
& dates:
0 (1/82); 1 (1/83); 1 (1/84); 1 (1/86); 1 (1/87); 1 (1/88); 1 (1/89); 1 (1/90); 1 (4/91); 1 (1/92); 1 (7/93);
009 AW 2   (1 car, even nos. only)
ORER description: Box, Even Nos. AAR Mech. Designation: XM
Dimensions: 36'-0" IL x 8'-6" IW x 8'-0" IH Capacity: 2448 cu. ft.; 60000 lbs
Doors: 5'-0" W x 7'-6 1/2" H End doors (ft. in.) 2'-0 1/2" W x 3'-6 1/2" H
Comments:
ORER car totals
& dates:
0 (2/1913); 1 (6/1917); 0 (7/40);
010 AW 4   (1 car, even nos. only)
ORER description: Box, Even Nos. AAR Mech. Designation: XM
Dimensions: 34'-1" IL x 8'-0" IW x 7'-0" IH Capacity: 1908 cu. ft.; 50000 lbs
Doors: 5'-6" W x 6'-7" H End doors (ft. in.) 2'-0" W x 2'-9" H
Comments:
ORER car totals
& dates:
0 (2/1913); 1 (6/1917); 0 (7/40);
011 AW 13 to 47   (14 cars, odd nos. only)
ORER description: Flat, Odd Nos. AAR Mech. Designation: FM
Dimensions: 34'-10" IL x 8'-6" IW Capacity: 40000 lbs
Comments:
ORER car totals
& dates:
0 (2/1913); 14 (6/1917); 1 (7/40); 0 (4/50);
012 AW 51 to 69   (9 cars, odd nos. only)
ORER description: Flat, Odd Nos. AAR Mech. Designation: FM
Dimensions: 33'-0" IL Capacity: 50000 lbs
Comments:
ORER car totals
& dates:
0 (2/1913); 9 (6/1917); 0 (7/40);
013 AW 100   (1 car)
ORER description: Flat, Stl., Flexi-Van, Twin Van Body AAR Mech. Designation: FC
Dimensions: 84'-6" IL x 9'-9" IW Capacity: 100000 lbs
Comments: The car was painted white, and the trailers were silver. Trailer numbers were 28-1000 and 28-1001. The ORER dimensions match a rebuilt Mark II car. In service hauling Novoply (chip board) from the U.S. Plywood plant in Gaylord, Mich. The car was disposed of in January 1967 according to official A&W references, contrary to the ORER information shown. The car/trailers had their last run via NYC/MILW/AHW ending on 1966.06.11.
ORER car totals
& dates:
0 (10/62); 1 (4/64); 1 (1/65); 1 (4/66); 1 (7/67); 1 (4/69); 1 (1/70); 1 (4/71); 1 (1/72); 1 (4/72); 1 (4/73); 1 (1/74); 1 (4/75); 0 (1/76);
014 AW 103   (1 car)
ORER description: AAR Mech. Designation:
Dimensions: Capacity: 0 lbs
Comments: Built 1950. AW refrigerator car #3002 may have become flatcar #103 in 1950. 3002 was retired that year, and flatcar 103 appeared and is noted as being 'converted.' It seems likely that the steel underframe from the reefer became a flatcar. #103 was used to ship boats from PBI, Inc. in Sturgeon Bay.
ORER car totals
& dates:
015 AW 1500 to 1504   (5 cars)
ORER description: Box AAR Mech. Designation: XMP
Dimensions: 60'-9" IL x 9'-4" IW x 10'-11" IH Capacity: 6204 cu. ft.; 180000 lbs
Doors: 16'-0" W x 10'-9" H
Comments: Built Pullman-Standard Car Manufacturing Co. 1963.12 (lot 8863). PS 6204 cu.ft "flat end Ford" boxcars. Exterior post, double plug doors. Probably ex-Pullman Leasing Co. (TLDX) 1500-1504 to AW 1500-1504 around early 1966, 2 went to RSP #? In early 1967, 3 went to MR 3010/3012/3014 in 1967, and the MR cars became GBW 82-84 in 1971/1972.
ORER car totals
& dates:
0 (1/65); 4 (4/66); 3 (7/67); 0 (4/69);
016 AW 3000 to 3004   (5 cars)
ORER description: Refrig. AAR Mech. Designation: RB
ORER Notes: Ice bunkers in cars numbered 3000, 3003 and 3004 are sealed and are not usable.
Dimensions: 33'-0" IL x 8'-5" IW x 7'-3" IH Capacity: 1999 cu. ft.; 70000 lbs
Doors: 4'-0" W x 6'-4" H
Comments: Built MDT 1923-24. Ex-Merchants Despatch Transportation reefer class M4-3. Ex-MDT #17625, 17435, 17437 part of MDT 17000-17999 (built 1923, RR Lot 469R, MDT Lot 636), ex-MDT #19021 part of MDT 19000-19439 (built 1924, RR Lot 497R MDT Lot 646), ex-MDT #19691 part of MDT 19440-19939 (built 1924, RR Lot 498R MDT Lot 646). Purchased by A&W on 1948.05.07 (#3000) and 1948.11.16 (#3001-3004). #3002 was retired in 1950, and all were out of service by 1954. Used in condensed milk service between Evangeline Milk Company in Sturgeon Bay and First National Stores in Somerville, Mass.
ORER car totals
& dates:
0 (7/40); 3 (4/50); 3 (4/52); 0 (1/55);

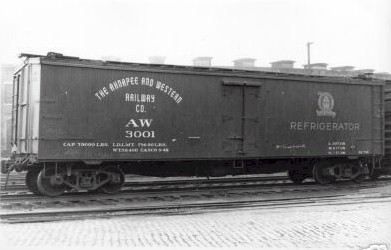

Photos: 3001   3004
017 AW 5200 to 5298   (50 cars, even nos. only)
ORER description: Box, Even Nos. AAR Mech. Designation: XM
Dimensions: 39 10 1/8" IL x 8'-7" IW x 7'-11" IH Capacity: 2707 cu. ft.; 80000 lbs
Doors: 5'-6" W x 7'-6" H End doors (ft. in.) 1'-6" W x 2'-0" H
Comments: Built Haskell & Barker Co. 1915.09 (lot 5114). Double-sheathed, truss rods. Probably idenical to GB&W #2600-2798. Truss-rod boxcars with lumber doors on 'A' end of car. Outwardly similar to CB&W class XM-17/18 box cars (100000- series). About half of the series was retired starting in 1938, and the rest slowly trickled out with a big batch being retired in 1943. Only two cars survived until the end of WWII. AW 5252 was retired 1945.08; 5270 in 1945.09. The cars likely remained in service to help with the wartime car supply crush, but were worn out. Information for AW 5234 shows a retirement date of 1942.10. Prior to that it was rebuilt in 1937.12 with the addition of Vulcan truck sides and journal boxes, replacing Arch bar side frames and journals. About half of the series was rebuilt in the same way at the same time.
ORER car totals
& dates:
31 (7/40); 0 (4/50);
018 AW X94 , X183   (3 cars)
ORER description: Maint. of Way AAR Mech. Designation:
Dimensions: Capacity:
Comments: Starting with the 4/50 ORER the listing was flat, 1; caboose, 1; misc. 1; total, 3 cars.
ORER car totals
& dates:
0 (6/1917); 2 (7/40); 3 (4/50); 3 (4/52); 3 (1/55); 3 (1/60); 3 (10/62); 3 (4/64); 3 (1/65); 3 (4/66); 3 (7/67); 3 (4/69); 0 (1/70);
019 GBW 1 to 373   (59 cars, odd nos. only)
ORER description: Flat, Odd Nos. AAR Mech. Designation:
ORER Notes: The following flat cars have a capacity of 4000 lbs. odd Nos.: Nos. 261, 265, 269, 277, 279,283. 291, 293, 297, 303, 305, 307, 315, 321 to 327; the following 30000 lbs., Nos. 11, 27, 31, 49, 75. 93, 99, 127, 141, 171, 187, 193, 201, 285, 311, 315, 329, 339 to 363, 367 to 373. All other flat cars 28000 lbs.
Dimensions: 33'-0" IL Capacity: 30000 lbs
Comments:
ORER car totals
& dates:
59 (3/1901); 59 (7/1904); 0 (2/1913);
020 GBW 2   (1 car)
ORER description: Flat AAR Mech. Designation: FM
Dimensions: 57'-0" IL x 8'-8" IW Capacity: 140000 lbs
Comments:
ORER car totals
& dates:
0 (4/64); 1 (1/65); 1 (4/66); 1 (7/67); 1 (4/69); 1 (1/70); 1 (4/71); 0 (1/72);
021 GBW 3   (1 car)
ORER description: Flat AAR Mech. Designation: FM
Dimensions: 40'-2" IL x 9'-6" IW Capacity: 100000 lbs
Comments:
ORER car totals
& dates:
0 (4/64); 1 (1/65); 1 (4/66); 1 (7/67); 1 (4/69); 1 (1/70); 1 (4/71); 1 (1/72); 1 (4/72); 0 (4/73);
022 GBW 4   (1 car)
ORER description: Flat AAR Mech. Designation: FM
Dimensions: 48'-4" IL x 9'-1" IW Capacity: 140000 lbs
Comments:
ORER car totals
& dates:
0 (4/64); 1 (1/65); 1 (4/66); 1 (7/67); 1 (4/69); 1 (1/70); 1 (4/71); 1 (1/72); 1 (4/72); 1 (4/73); 1 (1/74); 1 (4/75); 0 (1/76);
023 GBW 10 to 17   (8 cars)
ORER description: Gond., Side & End Extensions (Wood Chip) AAR Mech. Designation: LP; LG (1/74); GB (4/75)
Dimensions: 41'-6" IL x 9'-5" IW x 9'-10 IH Capacity: 3740 cu. ft.; 100000 lbs
Doors: 2'-4" W x 2'-2" H
Comments: Built 1941. 12 panels, deep fisbelly sides with taper in third and fourth panels from ends. Modified with side extensions for wood chip loading. Ex-DT&I 7000-7299. Leased to GBW on USRE lease lot 631. Side extensions removed from #10, 11, 15-17 (4/76), removed from remaining cars (1/79). Primarily used between Green Bay and somewhere on the CNW's Laona line (Gillette, Wis. to Michigan state line); they were seldom seen west of New London until the Laona line was abandoned. #17 remained in MOW service until at least 1987. Black w/ white serif lettering.
ORER car totals
& dates:
0 (7/67); 8 (4/69); 8 (1/70); 8 (4/71); 8 (1/72); 8 (4/72); 8 (4/73); 8 (1/74); 8 (4/75); 8 (1/76); 8 (1/77); 7 (7/78); 7 (1/79); 8 (1/80); 8 (1/81); 0 (1/82);
Photos: 12
024 GBW 20 to 29   (10 cars)
ORER description: Gond., Stl., 50K AAR Mech. Designation: GB
Dimensions: 52'-6" IL x 9'-6" IW x 5'-0" IH Capacity: 2094 cu. ft.; 200000 lbs
Comments: Built Thrall Car Manufacturing Co. 1977.07. 14 panels / 13 posts, very shallow fishbelly sides with the taper located in the third panel from the ends. Often loaded with scrap metal at Betten Processing, Green Bay. Some to SSAM 62750-62756 after 1993. Originally yellow with black lettering, at least some (#25) were painted red with simple white lettering in the 1980s although some (#21) kept yellow paint into the mid-2000s.
ORER car totals
& dates:
0 (1/77); 10 (7/78); 10 (1/79); 10 (1/80); 10 (1/81); 10 (1/82); 10 (1/83); 10 (1/84); 10 (1/86); 10 (1/87); 10 (1/88); 10 (1/89); 10 (1/90); 10 (4/91); 10 (1/92); 10 (7/93);
Photos: 21   21   25   28
025 GBW 22 , 82, 226, 378   (?? cars)
ORER description: Refrig. AAR Mech. Designation:
Dimensions: 28'-0" IL Capacity: 30000 lbs
Comments:
ORER car totals
& dates:
4 (3/1901); 0 (7/1904);

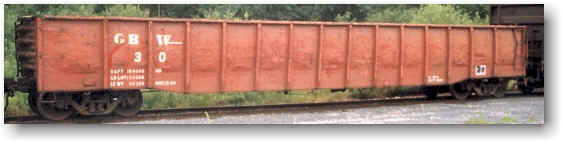

026 GBW 30 to 39   (10 cars)
ORER description: Gond. AAR Mech. Designation: GB
Dimensions: 52'-6" IL x 9'-6" IW x 4'-6" IH Capacity: 2340 cu. ft.; 154000 lbs
Comments: Built Thrall Car Manufacturing Co. 1966.04. 15 panels / 14 posts, fishbelly sides with the taper located in the third panel from the ends. Often used for tie loading near Whitehall. #37 in MOW service by 1987. Originally red w/ white lettering, painted yellow w/ black lettering about 1973. Painted red in mid-1980s.
ORER car totals
& dates:
0 (4/66); 10 (7/67); 10 (4/69); 10 (1/70); 10 (4/71); 10 (1/72); 10 (4/72); 10 (4/73); 10 (1/74); 10 (4/75); 10 (1/76); 10 (1/77); 10 (7/78); 10 (1/79); 10 (1/80); 10 (1/81); 10 (1/82); 10 (1/83); 10 (1/84); 10 (1/86); 10 (1/87); 10 (1/88); 10 (1/89); 10 (1/90); 10 (4/91); 10 (1/92); 10 (7/93);

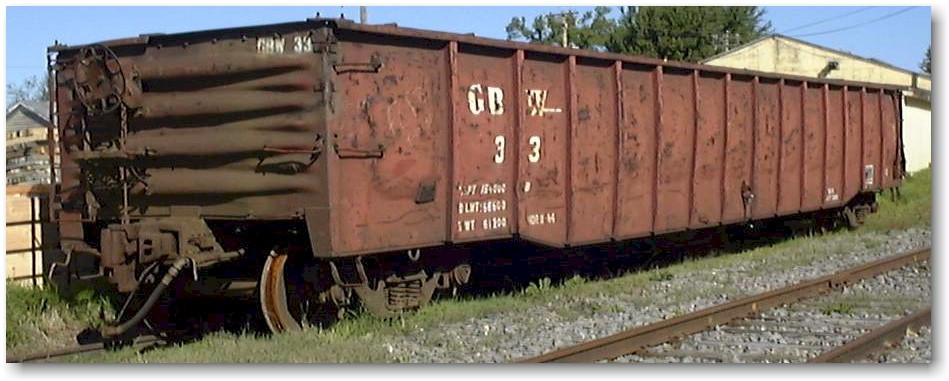

Photos: 30   33   35

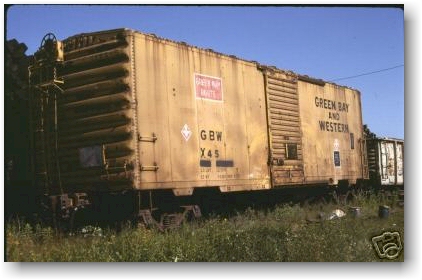

027 GBW 45   (1 car)
ORER description: Box, All Stl., Cush. Und. AAR Mech. Designation: XM
Dimensions: 40'-6" IL x 9'-2" IW x 10'-6" IH Capacity: 3900 cu. ft.; 100000 lbs
Doors: 6'-0" W x 10'-0" H
Comments: Built Pullman-Standard Car Manufacturing Co. 1962 (lot 8726). Originally PSX #45. In MOW service as X45 in 1973. Yellow, black lettering, red & white herald.
ORER car totals
& dates:
0 (1/60); 1 (10/62); 1 (4/64); 1 (1/65); 1 (4/66); 1 (7/67); 1 (4/69); 1 (1/70); 1 (4/71); 1 (1/72); 1 (4/72); 1 (4/73); 1 (1/74); 1 (4/75); 1 (1/76); 0 (1/77);
Photos: 45
028 GBW 46   (1 car)
ORER description: Box, All Stl., Cush. Und. AAR Mech. Designation: XM
Dimensions: 40'-6" IL x 9'-2" IW x 10'-5" IH Capacity: 3899 cu. ft.; 110000 lbs
Doors: 8'-0" W x 9'-11" H
Comments: Built Pullman-Standard Car Manufacturing Co. 1947.10. Flat ends. Originally Pullman-Standard PSX-3, CNW 1854. Hide loading only (4/75). Later in MOW service as X45. Scrapped June 2005. Yellow, black lettering, red & white herald.
ORER car totals
& dates:
0 (7/67); 1 (4/69); 1 (1/70); 1 (4/71); 1 (1/72); 1 (4/72); 1 (4/73); 1 (1/74); 1 (4/75); 1 (1/76); 1 (1/77); 1 (7/78); 1 (1/79); 1 (1/80); 1 (1/81); 1 (1/82); 1 (1/83); 1 (1/84); 1 (1/86); 0 (1/87);

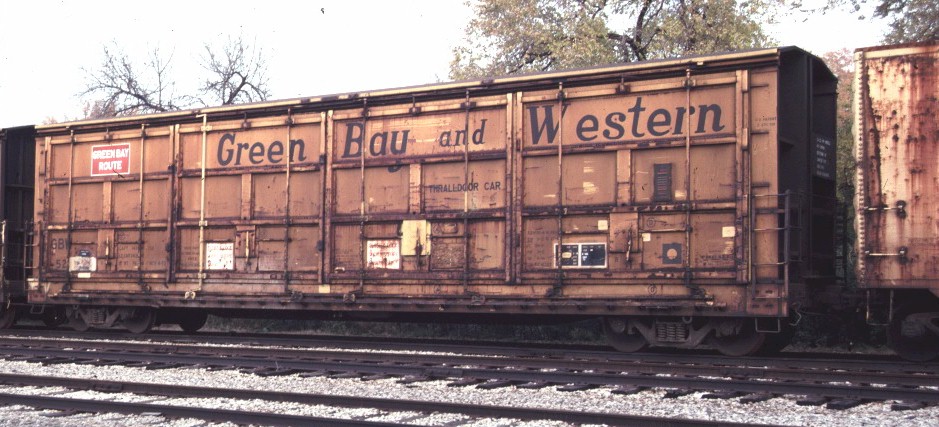

029 GBW 50 to 55   (6 cars)
ORER description: Box, All Stl., Cush. Und. AAR Mech. Designation: LU
Dimensions: 50'-6" IL x 9'-2" IW x 9'-6" IH Capacity: 4397 cu. ft.; 140000 lbs
Doors: 25'-0" W x 9'-6" H
Comments: Built Thrall Car Manufacturing Co. 1971.06 & 1973.04. Thrall all-door car. Some cars (#53, perhaps others) had 'WHEN EMPTY RETURN TO AGENT B.N.R.R. DULUTH MINN.' in small lettering; others (#55, perhaps others) had 'WHEN EMPTY RETURN TO AGENT C.M.ST.P.&P.R.R. COEUR D'ALENE, IDAHO.' Assigned to hauling hardboard products such as trunk partitions from a plant in Superior, Wis. to automotive companies in the Detroit, Mich. area. Typical routing of loaded cars was south on the BN from Superior, then across Wisconsin via the GBW, then Ann Arbor across Lake Michigan and east into Michigan, finally interchanging with the GTW near Detroit. By 1987 they were assigned to the Detroit & Mackinac RR, Alpena, Mich (the U.S. Plywood Co. had a particle board plant in Gaylord, Mich.). After the WC purchase, some of these cars remained in M-O-W service on the WC and CN. The last of the cars were scrapped in 2004. Yellow, black lettering, red & white herald. Unique serif GREEN BAY & WESTERN billboard lettering.
ORER car totals
& dates:
0 (4/71); 2 (1/72); 2 (4/72); 2 (4/73); 6 (1/74); 6 (4/75); 6 (1/76); 6 (1/77); 6 (7/78); 6 (1/79); 6 (1/80); 6 (1/81); 6 (1/82); 6 (1/83); 6 (1/84); 6 (1/86); 6 (1/87); 6 (1/88); 6 (1/89); 6 (1/90); 6 (4/91); 6 (1/92); 6 (7/93);
Photos: 52   54   55   55
030 GBW 60 to 61   (2 cars)
ORER description: Box, All Stl., Cush. Und. & Roller Bearings AAR Mech. Designation: XM
ORER Notes: Outside lengths shown for cars numbered 60 and 61 are as follows: 67 ft. 11 1/4 in. over striking plates; 60 ft. 9 7/8 in. over end sills.
Dimensions: 60'-9" IL x 9'-4" IW x 10'-6" IH Capacity: 5951 cu. ft.; 178000 lbs
Doors: 12'-0" W x 9'-8" H
Comments: Built Pullman-Standard Car Manufacturing Co., Birmingham, Ala. 1963.06 (lot 8820). Plug door. Initial cost $22,000 each. They were often found on the rear of eastbound train #2 so they probably came on line at Winona, Minnesota. Yellow with black lettering, aluminum door with 'Packers' emblem and black ends.
ORER car totals
& dates:
0 (10/62); 2 (4/64); 2 (1/65); 2 (4/66); 2 (7/67); 2 (4/69); 2 (1/70); 2 (4/71); 2 (1/72); 2 (4/72); 2 (4/73); 2 (1/74); 2 (4/75); 2 (1/76); 2 (1/77); 2 (7/78); 2 (1/79); 2 (1/80); 2 (1/81); 2 (1/82); 2 (1/83); 2 (1/84); 2 (1/86); 1 (1/87); 0 (1/88);
031 GBW 60 , 244   (2 cars)
ORER description: Caboose, Box AAR Mech. Designation: NE
Dimensions: Capacity: 0 lbs
Comments:
ORER car totals
& dates:
2 (3/1901); 1 (7/1904); 1 (2/1913); 1 (6/1917); 0 (7/40);
032 GBW 80 , 81   (5 cars)
ORER description: Box, All Stl., Cush. Und. AAR Mech. Designation: XM
Dimensions: 60'-9" IL x 9'-4" IW x 10'-11" IH Capacity: 6204 cu. ft.; 200000 lbs
Doors: 16'-0" W x 10'-9" H
Comments: Built Pullman-Standard Car Manufacturing Co. 1963.12 (lot 8874). PS 6204 cu.ft. "flat end Ford" cars. Exterior post, double plug doors. Typically were found on the rear of eastbound train #2 so they probably came on line at Winona, Minnesota. Yellow with black lettering, aluminum doors, herald on left door.
ORER car totals
& dates:
0 (10/62); 2 (4/64); 2 (1/65); 2 (4/66); 2 (7/67); 2 (4/69); 2 (1/70); 2 (4/71); 2 (1/72); 2 (4/72); 2 (4/73); 2 (1/74); 2 (4/75); 2 (1/76); 2 (1/77); 2 (7/78); 2 (1/79); 2 (1/80); 2 (1/81); 2 (1/82); 2 (1/83); 2 (1/84); 2 (1/86); 0 (1/87);
033 GBW 82 to 84   (5 cars)
ORER description: Box, All Stl., Cush. Und. AAR Mech. Designation: XM
Dimensions: 60'-9" IL x 9'-4" IW x 10'-11" IH Capacity: 6204 cu. ft.; 200000 lbs
Doors: 16'-0" W x 10'-9" H
Comments: Built Pullman-Standard Car Manufacturing Co. 1963.12 (lot 8863). PS 6204 cu.ft. "flat end Ford" cars. Exterior post, double plug doors. Probably ex-Pullman Leasing Co. (TLDX) 1500-1504 to AW 1500-1504 around early 1966, 2 went to Roscoe, Snyder & Pacific RSP #? In early 1967, 3 went to MR 3010/3012/3014 in 1967, and the MR cars became GBW 82-84 in 1971/1972. Typically were found on the rear of eastbound train #2 so they probably came on line at Winona, Minnesota. Yellow with black lettering, aluminum doors, herald on left door.
ORER car totals
& dates:
0 (10/62); 2 (4/64); 2 (1/65); 2 (4/66); 2 (7/67); 2 (4/69); 2 (1/70); 2 (4/71); 3 (1/72); 3 (4/72); 3 (4/73); 3 (1/74); 3 (4/75); 3 (1/76); 3 (1/77); 3 (7/78); 3 (1/79); 3 (1/80); 3 (1/81); 3 (1/82); 3 (1/83); 3 (1/84); 3 (1/86); 0 (1/87);

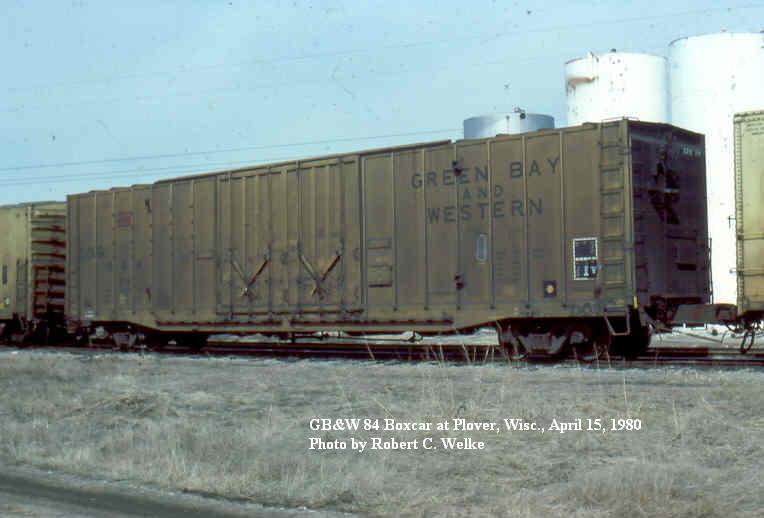

Photos: 84   84
034 GBW 90 to 99   (10 cars)
ORER description: Box, Stl., Cush. Und., Roller Bearings, 25K AAR Mech. Designation: XM
Dimensions: 60'-10" IL x 9'-6" IW x 11'-0" IH Capacity: 6357 cu. ft.; 154000 lbs
Doors: 10'-0" W x 10'-5" H
Comments: Built International Car Co. 1977.08. Exterior post with 10' Youngstown door. Originally in papermill service, in WC era renumbered to WC 49000- series and often used to ship crushed aluminum scrap from Green Bay to Chicago. Yellow, large black lettering.
ORER car totals
& dates:
0 (1/77); 10 (7/78); 10 (1/79); 10 (1/80); 10 (1/81); 10 (1/82); 10 (1/83); 10 (1/84); 10 (1/86); 10 (1/87); 10 (1/88); 10 (1/89); 10 (1/90); 10 (4/91); 10 (1/92); 10 (7/93);
Photos: 95   WCCL 49001
035 GBW 100 to 102   (3 cars)
ORER description: Box, Hy Cube AAR Mech. Designation: XML
ORER Notes: Cars numbered 100 to 102 are equipped for Auto Body Stampings
Dimensions: 86'-6" IL x 9'-2" IW x 12'-9" IH Capacity: 10000 cu. ft.; 140000 lbs
Doors: 20'-0" W x 12'-9" H
Comments: Built Thrall Car Manufacturing Co. 1964.09 (lot 170-G). Welded sides - one flat panel on each end and ten offset side panels near both sides of the door opening. #100 lettered 'When empty return to Wabash Railroad, Buffalo, New York.' and #106 lettered 'When empty return to DT&I R.R. Fordhaven, Michigan.' GBW #100-103 & 105-113 (13 cars) to AA #69000-69012 in 1969 and repainted; AA #69001,69002 were from #103-105 series built by Greenville. AA #69000-69004 (five cars) were subleased to SOO #69000-69004 in 1970; AA marks were stenciled over. By 1970 these cars were in service hauling refrigerators from Franklin Mfg. Co., St Cloud, Minn. to points east and empties west. To DT&I 69005-69012 (8 cars) by 1975.01; DT&I 69001-69004 added (13 cars total) by 1979.09. Two cars returned as GBW 69005, 69011 by 1972; remainder to GTW 169000-169012 from 1985.04 thru 1987.10. Dark oxide red with aluminum double door; white lettering; red & white herald.
ORER car totals
& dates:
0 (4/64); 3 (1/65); 3 (4/66); 3 (7/67); 0 (4/69);
036 GBW 103 to 105   (3 cars)
ORER description: Box, Hy Cube AAR Mech. Designation: XML
ORER Notes: Cars numbered 103 to 105 are equipped for Auto Body Stampings
Dimensions: 86'-6" IL x 9'-2" IW x 12'-9" IH Capacity: 10000 cu. ft.; 140000 lbs
Doors: 20'-0" W x 12'-9" H
Comments: Built Greenville Steel Car Co. 1965.06 (lot 861). Riveted sides - one flat panel on each end and ten offset side panels near both sides of the door opening. Built as part of a much larger order (lot #861) including 55 cars for L&N, 45 cars for N&W, and 155 cars for NYC. See GBW #100-102 for more information. Red with white lettering aluminum double door.
ORER car totals
& dates:
0 (1/65); 3 (4/66); 3 (7/67); 0 (4/69);
037 GBW 105 to 173   (11 cars, odd nos. only)
ORER description: Flat, Odd Nos. AAR Mech. Designation: FM
Dimensions: 33'-0" IL Capacity: 30000 lbs
Comments:
ORER car totals
& dates:
6 (2/1913); 2 (6/1917); 0 (7/40);
038 GBW 106 to 113   (8 cars)
ORER description: Box, Hy Cube AAR Mech. Designation: XML
Dimensions: 86'-6" IL x 9'-2" IW x 12'-9" IH Capacity: 10000 cu. ft.; 140000 lbs
Doors: 20'-0" W x 12'-9" H
Comments: Built Thrall Car Manufacturing Co. 1966.07 (lot 294-C). Welded sides - one flat panel on each end, nine offset side panels and one flat panel near both sides of the door opening. Lettered 'When empty return to D.T.&I. R.R., Fordhaven, Michigan.' See GBW #100-102 for more information. Red with white lettering, aluminum double door.
ORER car totals
& dates:
0 (4/66); 8 (7/67); 0 (4/69);
039 GBW 109   (1 car)
ORER description: Flat, Odd Nos., Stl. Und. AAR Mech. Designation: FM
Dimensions: 36'-5" IL x 8'-9" IW Capacity: 60000 lbs
Comments:
ORER car totals
& dates:
1 (7/40); 0 (4/50);
040 GBW 132 to 135   (4 cars)
ORER description: AAR Mech. Designation:
Dimensions: Capacity: 0 lbs
Comments: ex Oliver Mining. Appear to be Differential Steel Car Company (Difco) 35 CY cars built in the late 1930s. Put into service on 1980.06.12.
ORER car totals
& dates:
Photos: 135
041 GBW 140 to 149, 180 to 184   (15 cars)
ORER description: AAR Mech. Designation: GT
Dimensions: Capacity: 154000 lbs
Comments: Offset sides, slope bottom gondola. Used for slab wood loading between Kress (milepost 159) and Green Bay Packaging on Quincy Street in Green Bay. The cars were marked NOT FOR INTERCHANGE SERVICE. By 1987 were stored out of service at Blair. Ex-C&IM 70 ton gondolas.
ORER car totals
& dates:
Photos: 140
042 GBW 141   (1 car)
ORER description: Flat, Odd Nos., Stl. Und. AAR Mech. Designation: FM
Dimensions: 37'-4" IL x 9'-1" IW Capacity: 80000 lbs
Comments: Tanks added to transport milk and cream from the Van Camp Condensory in Casco, Wis. to the Van Camp plant in Sturgeon Bay.
ORER car totals
& dates:
1 (7/40); 0 (4/50);
Photos: 141
043 GBW 150 to 174   (25 cars)
ORER description: Hopper, Stl. AAR Mech. Designation: HMA
Dimensions: 20'-6" IL x 9'-4" IW Capacity: 1500 cu. ft.; 178000 lbs
Comments: Built Bethlehem Steel 1964.07. One-bay hopper. ex- LS&I #8500-8599, first appeared on GBW May-June 1980. Used for MOW ballast service. Received new GBW paint in 1982. To BRC 1000- series by 2010. GBW #165 in MOW service in GB&W paint on the York Durham Heritage Railway in Uxbridge, Ontario as of 2011. Red with white 'Itel' lettering.
ORER car totals
& dates:
0 (1/82); 25 (1/83); 25 (1/84); 25 (1/86); 25 (1/87); 25 (1/88); 25 (1/89); 25 (1/90); 25 (4/91); 25 (1/92); 25 (7/93);

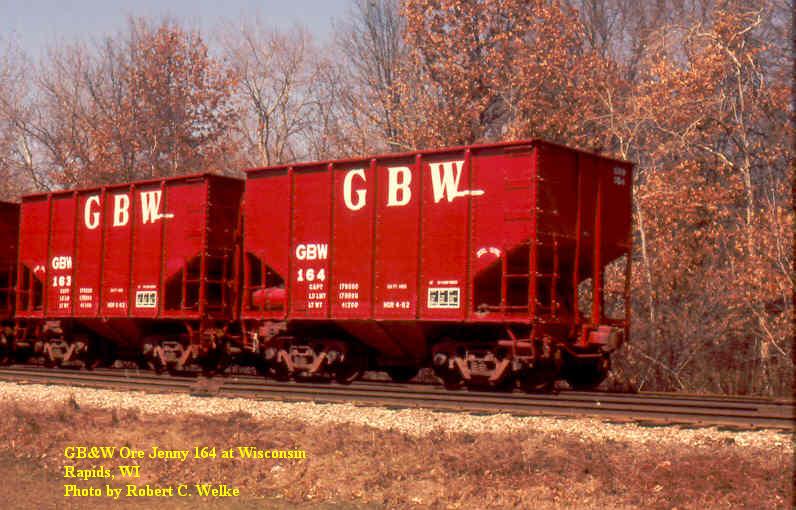

Photos: 162   164   171
044 GBW 160   (1 car)
ORER description: AAR Mech. Designation:
Dimensions: Capacity:
Comments: Flat car with end bulkheads. Apparently built from a 50' GBW 500- series boxcar ca. 1980. Yellow with black lettering.
ORER car totals
& dates:
045 GBW 200 to 224   (25 cars)
ORER description: Gond., Stl., Roller Bearings, 25K AAR Mech. Designation: GB
Dimensions: 52'-6" IL x 9'-6" IW x 3'-8" IH Capacity: 1828 cu. ft.; 198000 lbs
Comments:
ORER car totals
& dates:
0 (1/80); 25 (1/81); 0 (1/82);
046 GBW 200 to 214   (15 cars)
ORER description: Covd. Hopper AAR Mech. Designation: LO
Dimensions: Capacity: 4750 cu. ft.; 200000 lbs
Comments: Built Pullman-Standard Car Manufacturing Co. 1978.11 (lot 1004 / builder's no 3782). PS-2CD 4750 cu.ft 3-bay covered hopper. Ex- Rex Railways RREX 4181-4205. GBW 200-209 on roster 1989.01; GBW 210-214 added 1989.08. Pink with black lettering for FARMERS CO-OP (GBW 201) and ALBERT CITY ELEVATOR (GBW 202, 203, 205, 206, 207, 208 and 209), with GBW reporting marks in black on a light gray panel.
ORER car totals
& dates:
0 (1/89); 15 (1/90); 15 (4/91); 15 (1/92); 15 (7/93);
Photos: 201   208
047 GBW 200 to 209   (10 cars)
ORER description: Box, All Stl., Cush. Und. & Roller Bearings AAR Mech. Designation: XAP; XP (4/69)
ORER Notes: Cars in series 200 to 209 equipped with racks for auto parts
Dimensions: 60'-9" IL x 9'-2" IW x 10'-9" IH Capacity: 6000 cu. ft.; 180000 lbs
Doors: 16'-0" W x 10'-9" H
Comments: Built Greenville Steel Car Co. 1963.09 (lot 817). 46'-3" truck centers. To MILW 114176-114185 on United States Railway Equipment Co. lease lot 1152 1972.08. Dreadnaught 4/4 ends with round corners for W-section corner posts. Green with double door.
ORER car totals
& dates:
0 (10/62); 10 (4/64); 10 (1/65); 10 (4/66); 10 (7/67); 10 (4/69); 10 (1/70); 10 (4/71); 10 (1/72); 10 (4/72); 0 (4/73);

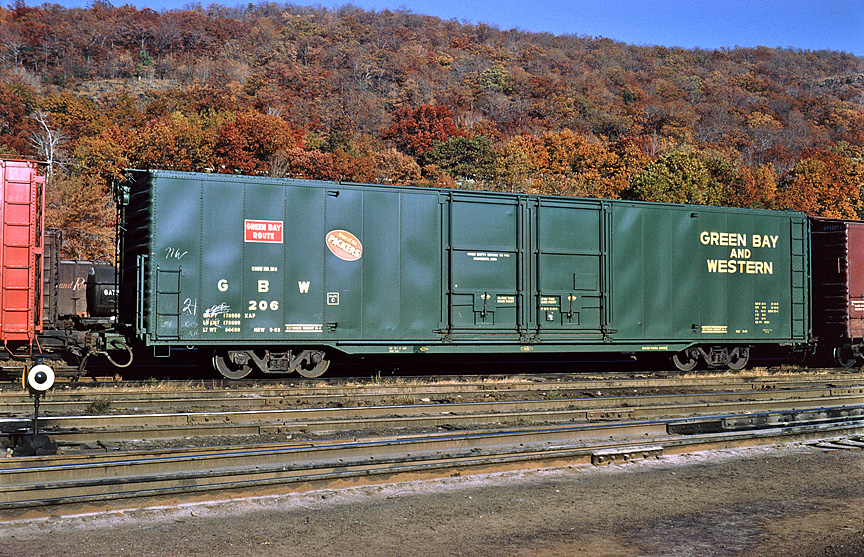

Photos: 206
048 GBW 201 to 259   (23 cars)
ORER description: Flat, Odd Nos., Stl. Und. AAR Mech. Designation: FM
ORER Notes: 219, 227, 239, 241, 258, are 36 feet in length.
Dimensions: 33'-0" IL x 8'-4" IW Capacity: 40000 lbs
Comments: Built F.M. Hicks? 1905?.
ORER car totals
& dates:
23 (2/1913); 2 (6/1917); 1 (7/40); 0 (4/50);
049 GBW 210 to 219   (10 cars)
ORER description: Box AAR Mech. Designation: XAP; XP (4/69)
Dimensions: 60'-9" IL x 9'-5" IW x 10'-9" IH Capacity: 6190 cu. ft.; 180000 lbs
Doors: 16'-0" W x 10'-9" H
Comments: Built ACF Industries 1964 (lot 11-06312). To MILW 114186-114194 on USRE lease lot 1152. Green with double door.
ORER car totals
& dates:
0 (4/64); 10 (1/65); 10 (4/66); 10 (7/67); 9 (4/69); 9 (1/70); 9 (4/71); 9 (1/72); 9 (4/72); 0 (4/73);
050 GBW 215 , 216   (2 cars)
ORER description: AAR Mech. Designation: LO
Dimensions: Capacity: 4750 cu. ft.; 0 lbs
Comments: Built Pullman-Standard Car Manufacturing Co. 1980.05 (lot 1065). Appears to be PS-2CD 4750 cu.ft 3-bay covered hoppers. Ex- PLCX series, Light gray with GBW marks and road number patched over in dark gray paint with black lettering.
ORER car totals
& dates:
051 GBW 217   (?? cars)
ORER description: AAR Mech. Designation:
Dimensions: Capacity: 0 lbs
Comments: Built Pullman-Standard Car Manufacturing Co. 1980.10 (lot 1102). Ex- PLCX 23141-23152
ORER car totals
& dates:
052 GBW 300 to 309   (10 cars)
ORER description: Box AAR Mech. Designation: XMP; XP (4/69)
ORER Notes: Cars in series 300 to 309 are equipped with special steel interior fixtures for loading large roll paper. These cars are equipped with roller bearings.
Dimensions: 50'-6" IL x 9'-4" IW x 10'-5" IH Capacity: 4954 cu. ft.; 150000 lbs
Doors: 10'-0" W x 9'-9" H
Comments: Built Pullman-Standard Car Manufacturing Co. 1964.08 (lot 8952). Originally in paper service; the remaining 9 cars (301 - 309) were converted for wood chip service in later years by modifying the doors and used to haul woodchips from Magnum Timber east of Hixton (milepost 156) to paper mills in the Wisconsin Rapids area.
ORER car totals
& dates:
0 (4/64); 10 (1/65); 10 (4/66); 10 (7/67); 10 (4/69); 10 (1/70); 10 (4/71); 10 (1/72); 10 (4/72); 10 (4/73); 10 (1/74); 9 (4/75); 9 (1/76); 9 (1/77); 9 (7/78); 9 (1/79); 9 (1/80); 9 (1/81); 9 (1/82); 9 (1/83); 9 (1/84); 9 (1/86); 9 (1/87); 9 (1/88); 9 (1/89); 9 (1/90); 9 (4/91); 9 (1/92); 9 (7/93);
Photos: 301   307
053 GBW 301 to 317   (4 cars, odd nos. only)
ORER description: Flat, Odd Nos. AAR Mech. Designation: FM; GB (6/17)
ORER Notes: Stone service ends, no sides.
Dimensions: 31'-7" IL x 7'-10 1/2" IW x 3'-0" IH Capacity: 60000 lbs
Comments: Reclassified as gondolas by 1917.
ORER car totals
& dates:
3 (2/1913); 5 (6/1917); 0 (7/40);
054 GBW 303   (1 car, odd nos. only)
ORER description: Gond., Odd Nos. AAR Mech. Designation: GA
Dimensions: 33'-0" IL Capacity: 60000 lbs
Comments:
ORER car totals
& dates:
1 (2/1913); 0 (6/1917);
055 GBW 309 , 311, 313, 315   (4 cars, odd nos. only)
ORER description: Flat, Odd Nos. AAR Mech. Designation: FM
Dimensions: 37'-4" IL x 9'-2" IW Capacity: 60000 lbs
Comments:
ORER car totals
& dates:
4 (6/1917); 0 (7/40);
056 GBW 401 489   (44 cars, odd nos. only)
ORER description: Gondola, Odd Nos. AAR Mech. Designation: GA; GB (6/17)
ORER Notes: Solid bottoms.
Dimensions: 35'-8" IL x 7'-11" IW x 4'-0" IH Capacity: 1104 cu. ft.; 60000 lbs
Comments: Built Haskell & Barker Co. (or perhaps Ryan Car Co.?) 1905.02. Some cars were reclassified as flat cars in 2/1913 ORER (#409, 415, 417, 421, 425, 433, 435); others were rated at 80,000 pounds in 2/1913 ORER.
ORER car totals
& dates:
44 (2/1913); 44 (6/1917); 1 (7/40); 0 (4/50);
057 GBW 415   (1 car)
ORER description: Flat, Odd Nos., Stl. Und. AAR Mech. Designation: FM
Dimensions: 36'-0" IL x 8'-4" IW Capacity: 60000 lbs
Comments:
ORER car totals
& dates:
1 (7/40); 0 (4/50);
058 GBW 419 , 435   (2 cars)
ORER description: Tank, Pickle AAR Mech. Designation:
Dimensions: 36'-0" IL Capacity: 60000 lbs
Comments:
ORER car totals
& dates:
2 (2/1913); 0 (6/1917);
059 GBW 472 , 728   (2 cars)
ORER description: Box, Beer AAR Mech. Designation: RB
Dimensions: 28'-0" IL x 8'-0" IW x 6'-0" IH Capacity: 30000 lbs
Comments:
ORER car totals
& dates:
1 (3/1901); 2 (7/1904); 1 (2/1913); 1 (6/1917); 0 (7/40);
060 GBW 483   (1 car)
ORER description: Gond., Fixed Ends AAR Mech. Designation: GB
Dimensions: 35'-8" IL x 9'-4" IW x 4'-1" IH Capacity: 1359 cu. ft.; 80000 lbs
Comments:
ORER car totals
& dates:
1 (7/40); 0 (4/50);
061 GBW 500 to 519   (20 cars)
ORER description: Box, All Stl., DF Loaders & Roller Bearings AAR Mech. Designation: XAP; XP (4/69)
Dimensions: 50'-6" IL x 9'-2" IW x 10'-6" IH Capacity: 4923 cu. ft.; 140000 lbs
Doors: 9'-0" W x 10'-1" H
Comments: Built Pullman-Standard Car Manufacturing Co. 1962.06 (lot 8692). 9' PS door, 'gradual slope' side sill. Used in Ford Motor Co. parts pool, have DF equipment installed by "home road" Detroit, Toledo & Ironton. Green with oval with 'Home of the Packers' logo to the right of the door. Painted yellow by 1973.
ORER car totals
& dates:
0 (1/60); 20 (10/62); 20 (4/64); 20 (1/65); 20 (4/66); 20 (7/67); 20 (4/69); 20 (1/70); 20 (4/71); 20 (1/72); 20 (4/72); 20 (4/73); 20 (1/74); 20 (4/75); 20 (1/76); 20 (1/77); 20 (7/78); 20 (1/79); 20 (1/80); 19 (1/81); 17 (1/82); 0 (1/83);
Photos: 511   517
062 GBW 600 , 604, 610 to 624   (17 cars)
ORER description: Box, Stl., Roller Bearings, 25K AAR Mech. Designation: XM
Dimensions: 40'-6" IL x 9'-4" IW x 10'-5" IH Capacity: 3956 cu. ft.; 110000 lbs
Doors: 8'-0" W x 9'-10" H
Comments: Rebuilt (?) in the late 1970s with new doors and roller bearing trucks. The 8' wide door types varied: #611 (Youngstown 8'), #619 (6-panel Superior 8'). These were the last 40' boxcars on the railroad. Some cars may have come from GBW 650-691(?), one car was observed to have' WABASH 91500' stenciled and painted on the side on the underframe. GBW 600, 604 were for general service; 610-624 assigned to tankage service (residue of animal tissue used for fertilizer) at Anamax in Green Bay.
ORER car totals
& dates:
0 (1/79); 17 (1/80); 17 (1/81); 17 (1/82); 17 (1/83); 17 (1/84); 17 (1/86); 16 (1/87); 16 (1/88); 16 (1/89); 16 (1/90); 16 (4/91); 16 (1/92); 16 (7/93);
Photos: 600   611
063 GBW 601 to 618   (12 cars)
ORER description: Caboose AAR Mech. Designation: NE
Dimensions: Capacity:
Comments:
ORER car totals
& dates:
12 (7/40); 7 (4/50); 7 (4/52); 8 (1/55); 8 (1/60); 8 (10/62); 8 (4/64); ? (1/65); 9 (4/66); 8 (7/67); 11 (4/69); 11 (1/70); 11 (4/71); 11 (1/72); 11 (4/72); 11 (4/73); 0 (1/74);
064 GBW 601 to 603, 605 to 609   (8 cars)
ORER description: Box, Stl., Roller Bearings, 25K AAR Mech. Designation: XM
Dimensions: 40'-6" IL x 9'-4" IW x 10'-5" IH Capacity: 3956 cu. ft.; 110000 lbs
Doors: 9'-0" W x 9'-10" H
Comments: Built Pullman-Standard Car Manufacturing Co. 1947-1948. Similar to other GBW 600-624 boxcars, but with 9' doors. GBW 600-609 were for general service.
ORER car totals
& dates:
0 (1/79); 8 (1/80); 8 (1/81); 8 (1/82); 8 (1/83); 8 (1/84); 8 (1/86); 8 (1/87); ? (1/88); 7 (1/89); 7 (1/90); 7 (4/91); 7 (1/92); 7 (7/93);
Photos: 607
065 GBW 650 to 691   (42 cars)
ORER description: Box, All Stl. AAR Mech. Designation: XME; XML (4/64); XM (1/65); XMP (4/66); XP (4/69)
ORER Notes: Cars in GB&WRR Series 650 to 691 are equipped with (DF) 4 Adjustable Belt Rails for Special Loading.
Dimensions: 40'-6" IL x 9'-2" IW x 10'-6" IH Capacity: 3903 cu. ft.; 100000 lbs
Doors: 7'-0" W x 9'-10 7/8" H
Comments: Built Pullman-Standard Car Manufacturing Co. 1947.12 to 1948.01 (lot 5882). 7' seven-panel Superior door. Part of ex- NYNH&H 33500-33999. Assigned for paper loading at Biron, Wisconsin' lettering; hide loading only in later years. Many were rebuilt as GBW 600- series in late 1970s. Yellow with black lettering, red & white herald. Originally had 'Packers' logo on sides. At least two (688 and 694) had black ends, most others had yellow ends.
ORER car totals
& dates:
0 (1/60); 42 (10/62); 42 (4/64); 42 (1/65); 42 (4/66); 42 (7/67); 42 (4/69); 42 (1/70); 42 (4/71); 41 (1/72); 41 (4/72); 40 (4/73); 39 (1/74); 39 (4/75); 39 (1/76); 38 (1/77); 36 (7/78); 36 (1/79); 16 (1/80); 0 (1/81);
066 GBW 689 to 700   (12 cars)
ORER description: Box, Stl., 25K (Tankage Loading Only) AAR Mech. Designation: XM
Dimensions: 50'-9" IL x 9'-2" IW x 10'-6" IH Capacity: 4855 cu. ft.; 110000 lbs
Doors: 8'-0" W x 9'-10" H
Comments: 50' cars stretched from 40' riveted side boxcars. Assigned to hide service at Anamax in Green Bay. Yellow with black lettering, red & white herald.
ORER car totals
& dates:
0 (1/80); 12 (1/81); 12 (1/82); 12 (1/83); 12 (1/84); 12 (1/86); 10 (1/87); 10 (1/88); 10 (1/89); 10 (1/90); ? (4/91); 9 (1/92); 9 (7/93);
067 GBW 700 to 899   (200 cars)
ORER description: Box, All Stl. AAR Mech. Designation: XM
Dimensions: 40'-6" IL x 9'-2" IW x 10'-6" IH Capacity: 3898 cu. ft.; 100000 lbs
Doors: 6'-0" W x 10'-0 3/4" H
Comments: Built Pullman-Standard Car Manufacturing Co. 1950.11 (lot 5977). 6' seven-panel Superior door; 12-panel roof. Rode on ASF-A3 trucks. Leased from the Equitable Life Assurance Society for a period of 15 years. Boxcar red with white lettering when delivered; some cars were painted red in the 1960s when they were shopped (at least 821 859, 862). Most cars were painted yellow with black lettering, red & white herald by 1970s, at least some were still boxcar red in 1973.
ORER car totals
& dates:
0 (4/50); 199 (4/52); 197 (1/55); 194 (1/60); 193 (10/62); 192 (4/64); 192 (1/65); 191 (4/66); 190 (7/67); 187 (4/69); 186 (1/70); 183 (4/71); 184 (1/72); 183 (4/72); 183 (4/73); 182 (1/74); 0 (4/75);

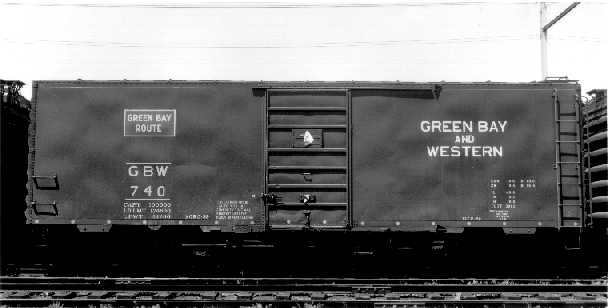

Photos: 740   787   821   862   878   891
068 GBW 700 762   (18 cars, even nos. only)
ORER description: Box AAR Mech. Designation:
Dimensions: Capacity: 40000 lbs
Comments:
ORER car totals
& dates:
18 (3/1901); 0 (7/1904);
069 GBW 700 to 748   (11 cars)
ORER description: Box, Beer AAR Mech. Designation: RB
Dimensions: 33'-0" IL x 8'-0" IW x 6'-0" IH Capacity: 30000 lbs
Comments:
ORER car totals
& dates:
11 (7/1904); 5 (2/1913); 0 (6/1917);
070 GBW 708 , 712, 716   (3 cars)
ORER description: Vegetable AAR Mech. Designation: RB
Dimensions: 32'-11" IL x 7'-10" IW x 5'-10" IH Capacity: 30000 lbs
Comments:
ORER car totals
& dates:
3 (6/1917); 0 (7/40);
071 GBW 710   (1 car)
ORER description: Refrig. AAR Mech. Designation:
Dimensions: 34'-0" IL Capacity: 40000 lbs
Comments:
ORER car totals
& dates:
1 (3/1901); 0 (7/1904); 3 (6/1917); 0 (7/40);
072 GBW 718 , 724, 740   (3 cars)
ORER description: Box, Beer AAR Mech. Designation: RB
Dimensions: 33'-0" IL x 8'-0" IW x 6'-0" IH Capacity: 24000 lbs
Comments:
ORER car totals
& dates:
3 (2/1913); 3 (6/1917); 0 (7/40);
073 GBW 750 , 752   (2 cars, even nos. only)
ORER description: Furniture, even Nos. AAR Mech. Designation:
Dimensions: 34'-0" IL Capacity: 40000 lbs
Comments:
ORER car totals
& dates:
074 GBW 760 , 762, 764   (3 cars)
ORER description: Refrigerator AAR Mech. Designation: RM
Dimensions: 34'-0" IL x 8'-0" IW x 7'-0" IH Capacity: 40000 lbs
Comments:
ORER car totals
& dates:
3 (2/1913); 3 (6/1917); 0 (7/40);
075 GBW 766 , 768, 770   (3 cars)
ORER description: Refrigerator AAR Mech. Designation: RM
Dimensions: 28'-9" IL x 7'-9" IW x 6'-9" IH Capacity: 40000 lbs
Comments:
ORER car totals
& dates:
1 (2/1913); 3 (6/1917); 0 (7/40);
076 GBW 772 , 774   (2 cars)
ORER description: Refrigerator AAR Mech. Designation: RM
Dimensions: 28'-2 1/2" IL x 7'-9 1/2" IW x 7'-8 1/2" IH Capacity: 1711 cu. ft.; 40000 lbs
Doors: 5'-0" W x 6'-0" H
Comments:
ORER car totals
& dates:
2 (6/1917); 0 (7/40);
077 GBW 776 , 778   (2 cars)
ORER description: Refrigerator AAR Mech. Designation: RM
Dimensions: 28'-5" IL x 7'-10" IW x 7'-9" IH Capacity: 1725 cu. ft.; 60000 lbs
Doors: 5'-0" W x 6'-0" H
Comments:
ORER car totals
& dates:
2 (6/1917); 0 (7/40);
078 GBW 800 to 802   (2 cars, even nos. only)
ORER description: Furniture, Even Nos. AAR Mech. Designation:
Dimensions: 34'-0" IL Capacity: 40000 lbs
Comments:
ORER car totals
& dates:
2 (3/1901); 2 (7/1904); 0 (2/1913);
079 GBW 900 to 949   (50 cars)
ORER description: Box, All Stl. AAR Mech. Designation: XME; XML (4/64); XMP (4/66)
ORER Notes: Cars in GBWRR series 900 to 949 are equipped with DF Loaders with adjustable rub rails, 4 in each car. These cars are also equipped with roller bearings.
Dimensions: 40'-6" IL x 9'-2" IW x 10'-5" IH Capacity: 3883 cu. ft.; 100000 lbs
Doors: 9'-0" W x 10'-0" H
Comments: Built Pullman-Standard Car Manufacturing Co. 1959.06 (lot 8496). Fishbelly sills, Superior (?) doors.. Roller bearing trucks. Assigned for paper loading at Biron, Wisconsin lettering. First yellow cars on the railroad, with black lettering, red & white herald. Car ends were origially painted black; repainted all-yellow and a 'Packers' emblem added in 1963.
ORER car totals
& dates:
0 (1/55); 50 (1/60); 50 (10/62); 50 (4/64); 50 (1/65); 50 (4/66); 50 (7/67); 50 (4/69); 50 (1/70); 50 (4/71); 50 (1/72); 50 (4/72); 50 (4/73); 50 (1/74); 50 (4/75); 50 (1/76); 50 (1/77); 50 (7/78); 50 (1/79); 49 (1/80); 47 (1/81); 46 (1/82); 0 (1/83);

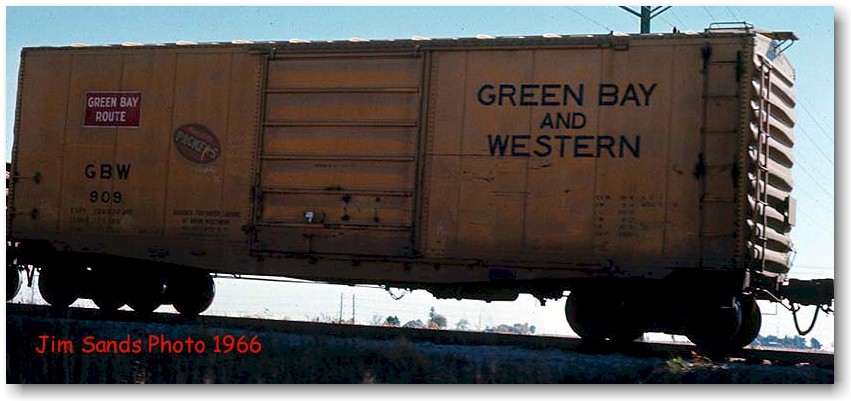

Photos: 909   917   933
080 GBW 901   (1 car)
ORER description: AAR Mech. Designation:
Dimensions: Capacity: 0 lbs
Comments: Built ACF 1955.02. GBW's second business car (along with #1776) 1982-1993. Originally UP dome-coach #9001; to Auto-Train #901 (1972.05); to GBW (1982.01); to Algoma Central after 1993. Read and white.
ORER car totals
& dates:
081 GBW 1000 to 1120   (60 cars, even nos. only)
ORER description: Box, even Nos. AAR Mech. Designation: XM
Dimensions: 34'-0" IL x 8'-0" IW x 7'-0" IH Capacity: 1904 cu. ft.; 50000 lbs
Doors: 5'-9" W x 6'-10" H End doors (ft. in.) 2'-4" W x 2'-10" H
Comments: Built 1892 ca..
ORER car totals
& dates:
60 (3/1901); 58 (7/1904); 53 (2/1913); 43 (6/1917); 0 (7/40);
082 GBW 1000 to 1004   (5 cars)
ORER description: Box, All Stl., DF Loaders & Roller Bearings AAR Mech. Designation: XML
Dimensions: 40'-6" IL x 9'-4" IW x 10'-6" IH Capacity: 3927 cu. ft.; 100000 lbs
Doors: 9'-0" W x 10'-1" H
Comments: Built Pullman-Standard Car Manufacturing Co. 1962.07 (lot 8693). 9' PS door. Roller bearing trucks. Outwardly identical to 900-949 cars. Green with Packers logo. Painted yellow in later years.
ORER car totals
& dates:
0 (10/62); 5 (4/64); 5 (1/65); 5 (4/66); 5 (7/67); 5 (4/69); 5 (1/70); 5 (4/71); 5 (1/72); 5 (4/72); 5 (4/73); 5 (1/74); 5 (4/75); 5 (1/76); 5 (1/77); 5 (7/78); 5 (1/79); 5 (1/80); 4 (1/81); 4 (1/82); 4 (1/83); 1 (1/84); 1 (1/86); 0 (1/87);
083 GBW 1100 to 1199   (100 cars)
ORER description: Box, Special Interior Fixtures For Loading Large Roll Paper AAR Mech. Designation: XP
Dimensions: 40'-6" IL x 9'-2" IW x 10'-6" IH Capacity: 3901 cu. ft.; 100000 lbs
Doors: 10'-0" W x 9'-10" H
Comments: Ex- ???
ORER car totals
& dates:
0 (7/67); 100 (4/69); 100 (1/70); 99 (4/71); 99 (1/72); 99 (4/72); 95 (4/73); 95 (1/74); 94 (4/75); 92 (1/76); 81 (1/77); 24 (7/78); 0 (1/79);

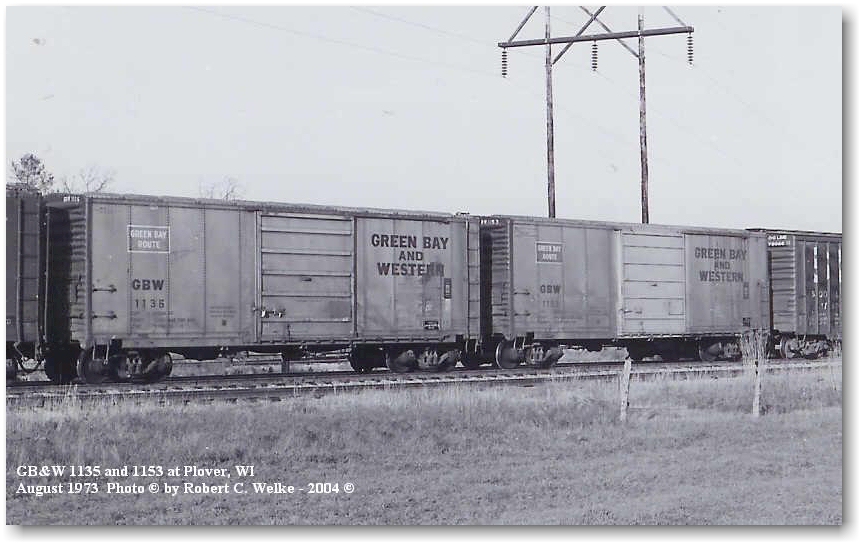

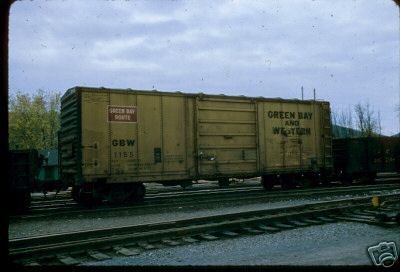

Photos: 1135   1155
084 GBW 1200 to 1798   (300 cars, even nos. only)
ORER description: Box, even Nos. AAR Mech. Designation: XM
Dimensions: 34'-0" IL x 8'-0" IW x 7'-0" IH Capacity: 1904 cu. ft.; 60000 lbs
Doors: 5'-8" W x 6'-10" H End doors (ft. in.) 2'-4" W x 2'-6" H
Comments: Built 1897.11.
ORER car totals
& dates:
300 (3/1901); 292 (7/1904); 282 (2/1913); 279 (6/1917); 0 (7/40);
085 GBW 1201   (1 car)
ORER description: Ballast Maxends AAR Mech. Designation: HFA
Dimensions: 30'-6" IL x 9'-5 1/2" IW x 7'-3" IH Capacity: 1988 cu. ft.; 100000 lbs
Comments: Built American Car & Foundry 1924. Rodger ballast car. Yellow, with black line herald in center of car.
ORER car totals
& dates:
1 (7/40); 1 (4/50); 1 (4/52); 1 (1/55); 1 (1/60); 1 (10/62); 1 (4/64); 1 (1/65); 1 (4/66); 1 (7/67); 1 (4/69); 1 (1/70); 1 (4/71); 1 (1/72); 1 (4/72); 1 (4/73); 0 (1/74);
086 GBW 1203   (1 car)
ORER description: Hopper AAR Mech. Designation: HK
Dimensions: 33'-2" IL x 10'-1" IW x 7'-2" IH Capacity: 1983 cu. ft.; 100000 lbs
Comments: Built American Car & Foundry 1927. Yellow, with black line herald in center of car.
ORER car totals
& dates:
1 (7/40); 1 (4/50); 1 (4/52); 1 (1/55); 1 (1/60); 1 (10/62); 1 (4/64); 1 (1/65); 1 (4/66); 1 (7/67); 1 (4/69); 1 (1/70); 1 (4/71); 1 (1/72); 1 (4/72); 1 (4/73); 0 (1/74);
087 GBW 1700 to 1719   (20 cars)
ORER description: Box AAR Mech. Designation: XL
Dimensions: 50'-6" IL x 9'-5" IW x 10'-6" IH Capacity: 5020 cu. ft.; 161000 lbs
Doors: 10'-0" W x 9'-9" H
Comments: Built Pullman-Standard Car Manufacturing Co. 1966.02 (lot 9064A). Identical to C&NW cars. Assigned to Procter & Gamble and James River paper mills in Green Bay. The last remaining car in this series #1712 was still on the CN as of 2006. Yellow, black ends, no herald.
ORER car totals
& dates:
0 (4/66); 20 (7/67); 20 (4/69); 20 (1/70); 20 (4/71); 20 (1/72); 20 (4/72); 20 (4/73); 20 (1/74); 20 (4/75); 20 (1/76); 19 (1/77); 19 (7/78); 19 (1/79); 19 (1/80); 19 (1/81); 19 (1/82); 19 (1/83); 19 (1/84); 19 (1/86); 17 (1/87); 17 (1/88); 17 (1/89); 17 (1/90); 17 (4/91); 17 (1/92); 17 (7/93);

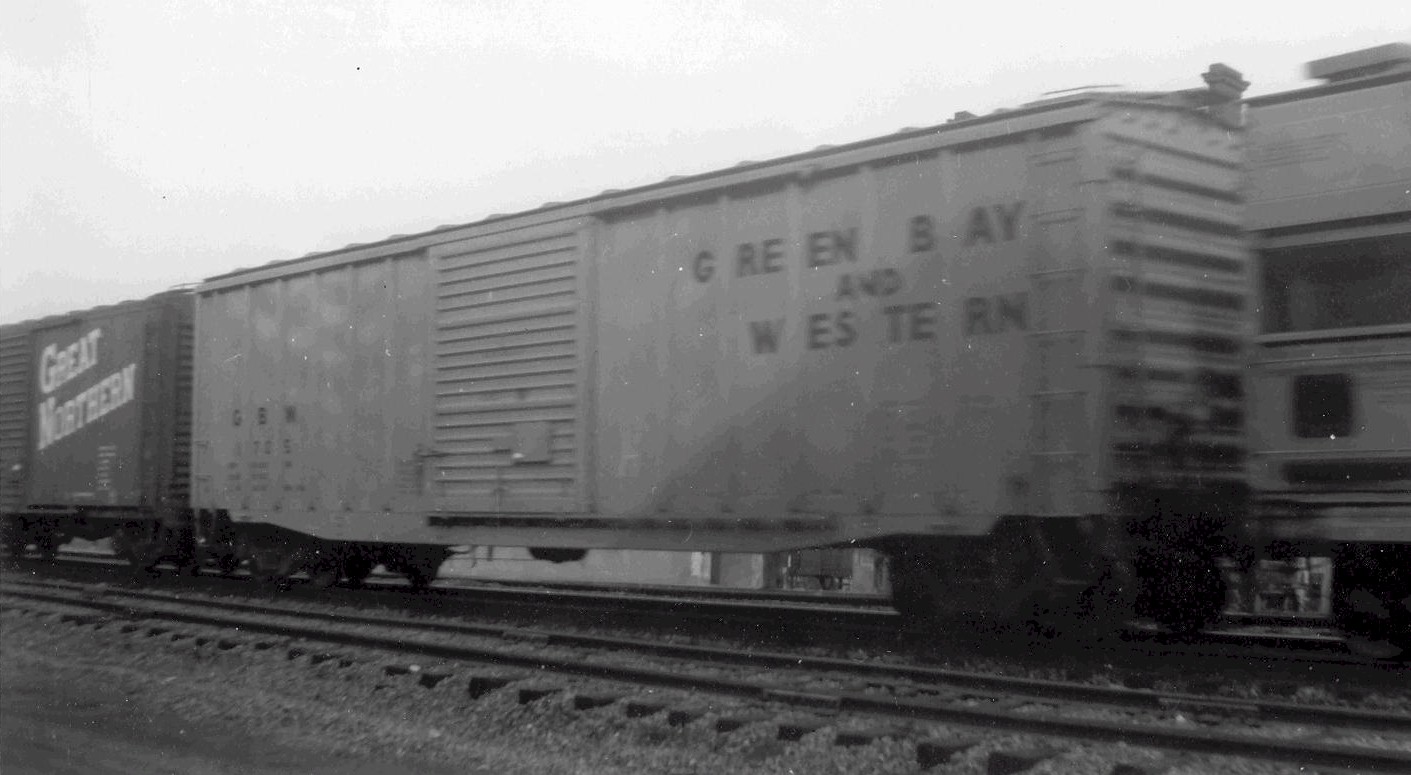

Photos: 1709   1718
088 GBW 1706   (1 car)
ORER description: AAR Mech. Designation:
Dimensions: Capacity: 0 lbs
Comments: Wood sheathed boxcar. Unsure of the total quantity of cars in this series.
ORER car totals
& dates:
089 GBW 1730 to 1759   (30 cars)
ORER description: Box, Stl., 50K AAR Mech. Designation: XM
Dimensions: 50'-6" IL x 9'-6" IW x 11'-0" IH Capacity: 5277 cu. ft.; 159000 lbs
Doors: 10'-0" W x 10'-4" H
Comments: Built Pullman-Standard Car Manufacturing Co. 1974.10 (lot 9772B). PS 5277 cu.ft. exterior post boxcar. 70-Ton 50'-6'' all steel boxcars with rigid underframe and 10'-0'' door opening, price $21,032.98 each. Assigned to Procter & Gamble and James River paper mills in Green Bay. GBW #1737, #1742 converted to trash gondolas by SGLR (Seminole Gulf Railway).
ORER car totals
& dates:
0 (1/74); 30 (4/75); 30 (1/76); 30 (1/77); 29 (7/78); 29 (1/79); 29 (1/80); 29 (1/81); 29 (1/82); 29 (1/83); 29 (1/84); 29 (1/86); 29 (1/87); 29 (1/88); 29 (1/89); 29 (1/90); ? (4/91); 9 (1/92); 0 (7/93);

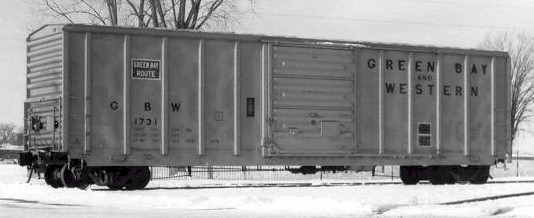

Photos: 1731
090 GBW 1800 to 1998   (100 cars, even nos. only)
ORER description: Box, even Nos. AAR Mech. Designation: XM
Dimensions: 33'-6" IL x 8'-6" IW x 8'-0" IH Capacity: 2278 cu. ft.; 60000 lbs
Doors: 5'-6" W x 7'-10" H End doors (ft. in.) 2'-2" W x 2'-6" H
Comments:
ORER car totals
& dates:
98 (7/1904); 94 (2/1913); 93 (6/1917); 0 (7/40);
091 GBW 2000 to 2398   (200 cars, even nos. only)
ORER description: Box, even Nos. AAR Mech. Designation: XM
Dimensions: 36'-0" IL x 8'-6" IW x 8'-0" IH Capacity: 2448 cu. ft.; 60000 lbs
Doors: 6'-0" W x 7'-10" H End doors (ft. in.) 2'-2" W x 2'-6" H
Comments: Built Haskell & Barker Co. 1904, 1907. 2000-2098 built 1904; 2100-2398 added in 1907.
ORER car totals
& dates:
50 (7/1904); 195 (2/1913); 190 (6/1917); 0 (7/40);
092 GBW 2100 to 2398   (150 cars, even nos. only)
ORER description: Box, even Nos. AAR Mech. Designation:
Dimensions: 36'-0" IL x 8'-6" IW x 8'-0" IH Capacity: 60000 lbs
Comments:
ORER car totals
& dates:
093 GBW 2300 to 2349   (50 cars)
ORER description: Box, DF Belt Rails & Cross Bars For Special Loading AAR Mech. Designation: XL
Dimensions: 50'-6" IL x 9'-4" IW x 10'-6" IH Capacity: 4988 cu. ft.; 150000 lbs
Doors: 10'-0" W x 9'-10" H
Comments: Built Evans Products Co. 1967.07 (lot 593). Single plug door. Yellow, black ends.
ORER car totals
& dates:
0 (7/67); 50 (4/69); 50 (1/70); 50 (4/71); 50 (1/72); 50 (4/72); 50 (4/73); 50 (1/74); 50 (4/75); 50 (1/76); 50 (1/77); 49 (7/78); 49 (1/79); 48 (1/80); 47 (1/81); 47 (1/82); 0 (1/83);
094 GBW 2400 to 2598   (100 cars, even nos. only)
ORER description: Box AAR Mech. Designation: XM
Dimensions: 36'-0" IL x 8'-6" IW x 8'-0" IH Capacity: 2448 cu. ft.; 60000 lbs
Doors: 5'-6" W x 7'-7" H End doors (ft. in.) 2'-0" W x 2'-9" H
Comments: Built Haskell & Barker Co. 1910.
ORER car totals
& dates:
0 (7/1904); 99 (2/1913); 96 (6/1917); 0 (7/40);
095 GBW 2400 to 2449   (50 cars)
ORER description: Box, DF Belt Rails & Cross Bars For Special Loading AAR Mech. Designation: XL
Dimensions: 50'-6" IL x 9'-4" IW x 10'-6" IH Capacity: 4988 cu. ft.; 150000 lbs
Doors: 15'-0" W x 9'-10" H
Comments: Built Evans Products Co. 1967.08 (lot 589). Double 7'+8' offset plug doors. Yellow, black ends.
ORER car totals
& dates:
0 (7/67); 49 (4/69); 49 (1/70); 49 (4/71); 49 (1/72); 49 (4/72); 48 (4/73); 48 (1/74); 48 (4/75); 48 (1/76); 48 (1/77); 48 (7/78); 48 (1/79); 48 (1/80); 48 (1/81); 48 (1/82); 0 (1/83);

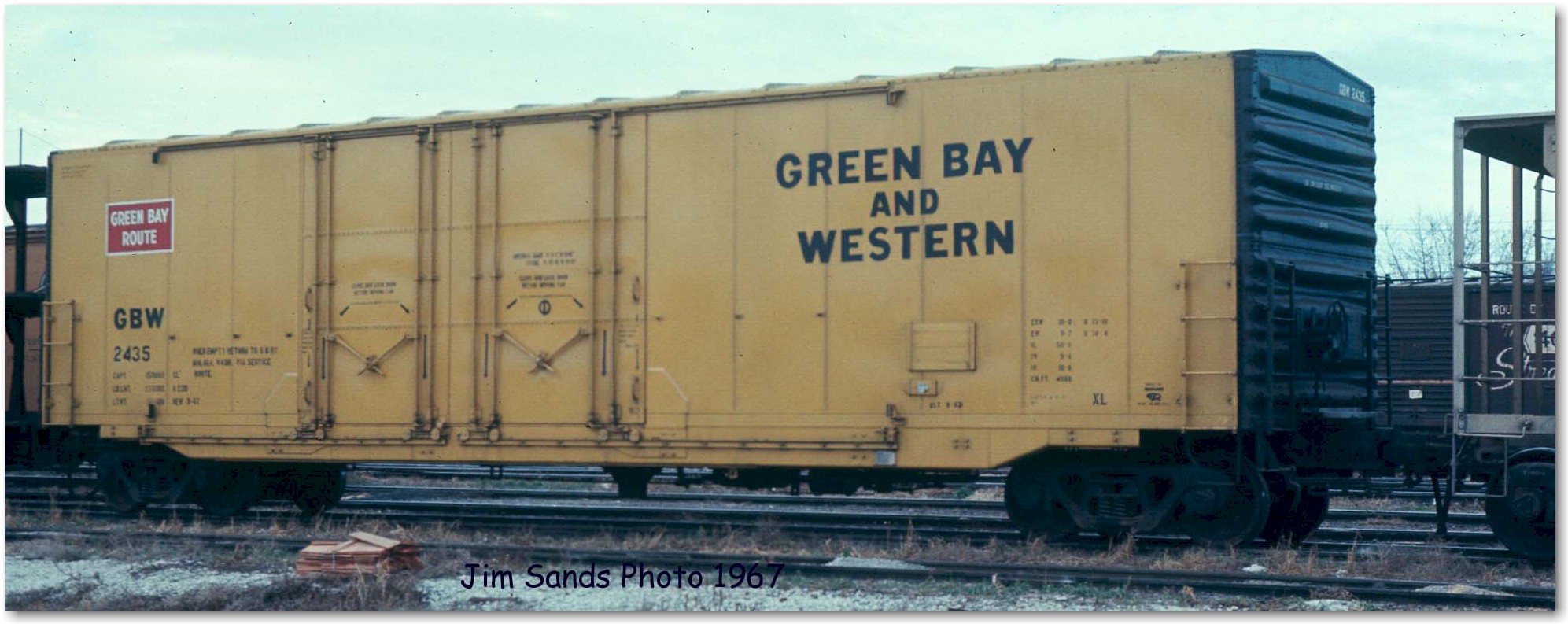

Photos: 2435
096 GBW 2500 to 2699   (200 cars, even nos. only)
ORER description: Box, Plug Doors & DF-2 Belt Rails AAR Mech. Designation: XL
Dimensions: 50'-6" IL x 9'-4" IW x 10'-6" IH Capacity: 4955 cu. ft.; 110000 lbs
Doors: 10'-0" W x 9'-10" H
Comments: Built Pullman-Standard Car Manufacturing Co. 1953.05-1953.06 (lot 8112). 10' Superior plug doors Built in 1953.05 as riveted side, double door PS-1s, DT&I 15000-15299. They were rebuilt as single plug door cars, presumably by USRE in 1968 and then leased to GBW (USRA lease lot 718) . As rebuilt they were equipped with 10 ft exterior-post Superior plug doors (5 horizontal panels, 4 door rods, V latch bars) and DF-2 belt rails. A small group (2600-2620+) are repeatedly and constantly empty westward and loaded with plywood eastward on the SP&S/BN. All were loaded in Eugene, Oregon, suggesting they were assigned, pooled, or leased. Stenciled return to 'Albany, Ore.' There is a color photo of GBW 2574 in Classic Freight Cars Vol.8.
ORER car totals
& dates:
0 (7/67); 199 (4/69); 199 (1/70); 198 (4/71); 197 (1/72); 197 (4/72); 195 (4/73); 195 (1/74); 191 (4/75); 191 (1/76); 187 (1/77); 183 (7/78); 181 (1/79); 178 (1/80); 176 (1/81); 0 (1/82);
097 GBW 2600 to 2798   (100 cars, even nos. only)
ORER description: Box, Even Nos. AAR Mech. Designation: XM
Dimensions: 39 10 1/8" IL x 8'-7" IW x 8'-0" IH Capacity: 2735 cu. ft.; 80000 lbs
Doors: 5'-6" W x 7'-6" H End doors (ft. in.) 1'-2" W x 2'-0" H
Comments: Built Haskell & Barker Co. 1915.10 (lot 5114AA). Wood double sheathed sides. Probably idenical to KGB&W #5000-5198, A&W #5200-5298. Truss-rod boxcars with lumber doors on 'A' end of car. 82 cars on roster in 1937, 43 in 1942.
ORER car totals
& dates:
0 (2/1913); 100 (6/1917); 45 (7/40); 0 (4/50);
098 GBW 2700 to 2709   (10 cars)
ORER description: Box AAR Mech. Designation: XL
Dimensions: 50'-6" IL x 9'-5" IW x 10'-6" IH Capacity: 5050 cu. ft.; 151000 lbs
Doors: 10'-0" W x 9'-11" H
Comments: Built Pullman-Standard Car Manufacturing Co. 1969.06 (lot 9396). Waffle sides. Sometimes used to load whey powder at Foremost Farms in Plover in the 1970s (1-2 cars per week). By 1987, assigned to Procter & Gamble and James River paper mills in Green Bay. In their last years on the WC, these cars haulled wetlap from the Stora Enso mill in Wisconsin Rapids (formerly Consolidated Papers) to the Stora Enso mill in Kimberly, Wis. (formerly Kimberly Clark). The last car in this series #2707 was still on the CN as of 2006. Yellow with black ends; black lettering, red & white herald.
ORER car totals
& dates:
0 (4/69); 10 (1/70); 10 (4/71); 10 (1/72); 10 (4/72); 10 (4/73); 10 (1/74); 10 (4/75); 10 (1/76); 10 (1/77); 10 (7/78); 10 (1/79); 10 (1/80); 10 (1/81); 10 (1/82); 10 (1/83); 10 (1/84); 10 (1/86); 10 (1/87); 10 (1/88); 10 (1/89); 10 (1/90); 10 (4/91); 10 (1/92); 10 (7/93);
Photos: 2700
099 GBW 2710 to 2729   (20 cars)
ORER description: Box AAR Mech. Designation: XL
Dimensions: 50'-6" IL x 9'-6" IW x 10'-11" IH Capacity: 5238 cu. ft.; 154000 lbs
Doors: 9'-0" W x 10'-3" H
Comments: Built Pullman-Standard Car Manufacturing Co. 1971.12 (lot 9753). Waffle sides. Sometimes used to load whey powder at Foremost Farms in Plover in the 1970s (1-2 cars per week). By 1987, most were assigned to Procter & Gamble and James River paper mills in Green Bay, others (2710-2712, 2714, 2723, 2726, 2729) used as wood chip cars with modified doors for shipment to Nekoosa Edwards Paper Company in Port Edwards, Wis. From Magnum Timber east of Hixton, Wis. (milepost 156); the remaining 12 cars in the 2710 - 2729 series were not converted Yellow with black lettering, black outline herald.
ORER car totals
& dates:
0 (1/72); 20 (4/72); 20 (4/73); 20 (1/74); 20 (4/75); 20 (1/76); 20 (1/77); 20 (7/78); 20 (1/79); 20 (1/80); 20 (1/81); 20 (1/82); 20 (1/83); 20 (1/84); 20 (1/86); 20 (1/87); 20 (1/88); 20 (1/89); 20 (1/90); 19 (4/91); 19 (1/92); 19 (7/93);
Photos: 2719
100 GBW 2800 to 2899   (100 cars)
ORER description: Box AAR Mech. Designation: XL
ORER Notes: Cars in series 2800 to 2899 are equipped with four (4) DF-2 Belt Rails.
Dimensions: 50'-6" IL x 9'-2" IW x 10'-6" IH Capacity: 4860 cu. ft.; 110000 lbs
Doors: 8'-0" W x 9'-10" H
Comments: 50 foot 50 ton capacity AAR code A 230, mechanical designation XL, Box Car, with 8'0" sliding doors, and minimum DF belt rails to qualify for XL designation. Ex- RDG 105300-105499 to GBW on USRE lease lot 956 (1970.04.03). Yellow with black lettering, red & white herald.
ORER car totals
& dates:
0 (1/70); 100 (4/71); 100 (1/72); 100 (4/72); 100 (4/73); 99 (1/74); 98 (4/75); 97 (1/76); 97 (1/77); 93 (7/78); 93 (1/79); 92 (1/80); 0 (1/81);
Photos: 2802
101 GBW 2900 to 2974   (75 cars)
ORER description: Box, DF-2 Belt Rails AAR Mech. Designation: XL
Dimensions: 50'-9" IL x 9'-2" IW x 10'-5" IH Capacity: 4846 cu. ft.; 110000 lbs
Doors: 9'-0" W x 9'-10" H
Comments: 50' cars stretched from 40' riveted side boxcars by American-Fletcher leasing. At least some were sold to ELS with white paint-out of reporting marks but keeping the same car numbers. Yellow with black lettering, red & white herald.
ORER car totals
& dates:
0 (4/73); 75 (1/74); 75 (4/75); 75 (1/76); 75 (1/77); 74 (7/78); 74 (1/79); 73 (1/80); 71 (1/81); 71 (1/82); 71 (1/83); 6 (1/84); 0 (1/86);

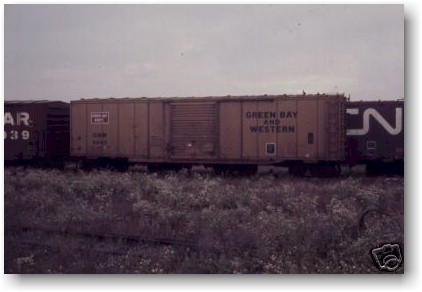

Photos: 2943   2969
102 GBW 3000 to 3124   (125 cars)
ORER description: Box, DF-2 Belt Rails AAR Mech. Designation: XL
Dimensions: 50'-9" IL x 9'-2" IW x 10'-5" IH Capacity: 4865 cu. ft.; 110000 lbs
Doors: 9'-0" W x 9'-11" H
Comments: 50' cars stretched from 40' riveted side boxcars by American-Fletcher leasing. Yellow with black lettering, red & white herald.
ORER car totals
& dates:
0 (4/73); 125 (1/74); 125 (4/75); 125 (1/76); 123 (1/77); 122 (7/78); 122 (1/79); 121 (1/80); 121 (1/81); 120 (1/82); 120 (1/83); 37 (1/84); 0 (1/86);
103 GBW 4000 to 4048   (49 cars)
ORER description: Box, DF-2 Belt Rails AAR Mech. Designation: XL
Dimensions: 50'-9" IL x 9'-2" IW x 10'-6" IH Capacity: 4885 cu. ft.; 110000 lbs
Doors: 8'-0" W x 9'-10" H
Comments: Built 1956.06. 50' cars stretched from 40' riveted side boxcars by Chicago Freight Car Co. These cars were mixed PS and ACF-type cars (4015 ACF, 4036 & 4047 PS cars). In later years most (34 cars, but excluding 4001, and 4009) car doors were modified with a 'cut-out' at the top (on one side of the car only) to allow wood chips to be blown into the cars, and used to haul woodchips from Magnum Timber in Hixton, Wis. to Consolidated Paper in Wisconsin Rapids. There were 34 on the roster in 1994, 18 lasted to the CN takeover of WC in 2001. Yellow with black lettering, red & white herald.
ORER car totals
& dates:
0 (4/73); 49 (1/74); 49 (4/75); 49 (1/76); 49 (1/77); 49 (7/78); 48 (1/79); 48 (1/80); 36 (1/81); 36 (1/82); 36 (1/83); 36 (1/84); 36 (1/86); 36 (1/87); 36 (1/88); 36 (1/89); 36 (1/90); 36 (4/91); 36 (1/92); 36 (7/93);

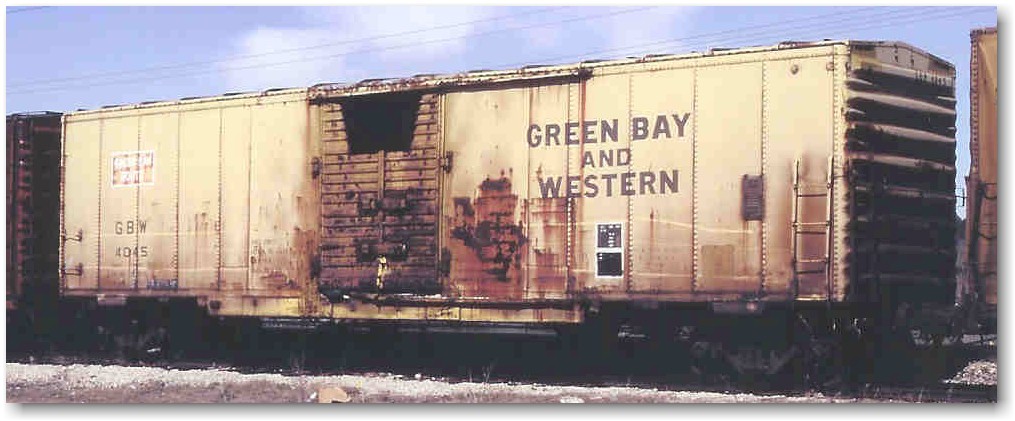

Photos: 4045
104 GBW 4001 to 4035   (18 cars)
ORER description: Gondola, Odd Nos. AAR Mech. Designation: GA
Dimensions: 26'-4" IL x 8'-0 1/2" IW x 5'-0" IH Capacity: 60000 lbs
Comments:
ORER car totals
& dates:
18 (6/1917); 0 (7/40);
105 GBW 4037 to 4075   (19 cars, odd nos. only)
ORER description: Hopper, Odd Nos. AAR Mech. Designation: HM
Dimensions: 30'-9" IL x 8'-11 1/2" IW x 6'-10" IH Capacity: 1579 cu. ft.; 100000 lbs
Comments: Wood sides Seley hopper. Ex-Virgininian, purchased via General Equipment Co. #4037-4051 (8 cars) acquired 1922.04 for $6600 ($825 each). #4053-4075 (12 cars) acquired 1924.10.
ORER car totals
& dates:
19 (7/40); 0 (4/50);
106 GBW 4100 to 4193   (94 cars)
ORER description: Box, Stl., 25K AAR Mech. Designation: XM
Dimensions: 50'-6" IL x 9'-2" IW x 10'-6" IH Capacity: 4860 cu. ft.; 110000 lbs
Doors: 8'-0" W x 9'-10" H
Comments: 4/3/1 ends, diagonal panel roof. 50' cars stretched from 40' riveted side ACF-type cars by Chicago Freight Car Co.
ORER car totals
& dates:
0 (1/74); 94 (4/75); 94 (1/76); 91 (1/77); 89 (7/78); 89 (1/79); 89 (1/80); 89 (1/81); 89 (1/82); 89 (1/83); 43 (1/84); 0 (1/86);
107 GBW 4101 to 4159   (30 cars)
ORER description: Gondola, Odd Nos. AAR Mech. Designation: GB
Dimensions: 35'-0" IL x 9'-6" IW x 3'-7" IH Capacity: 1171 cu. ft.; 40000 lbs
Comments:
ORER car totals
& dates:
30 (6/1917); 0 (7/40);
108 GBW 4200 to 4399   (200 cars)
ORER description: Box, Stl., 25K AAR Mech. Designation: XM
Dimensions: 50'-9" IL x 9'-2" IW x 10'-6" IH Capacity: 4885 cu. ft.; 110000 lbs
Doors: 8'-0" W x 9'-10" H
Comments: Reconstructed by Chicago Freight Car Co.with 8' sliding doors and 25,000 lb forklift capacity from older 40' boxcars for $12,825 each. Some had an early version of 5-5 dreadnaught ends. At least one photo shows a diagonal panel roof which is probably a replacement since cars with 5-5-5 ends were generally built with Murphy (rectangular panel) roofs.
ORER car totals
& dates:
0 (1/74); 199 (4/75); 198 (1/76); 195 (1/77); 194 (7/78); 194 (1/79); 192 (1/80); 191 (1/81); 190 (1/82); 180 (1/83); 69 (1/84); 0 (1/86);
Photos: 4220   4292   4396
109 GBW 4201 to 4299   (50 cars, odd nos. only)
ORER description: AAR Mech. Designation:
ORER Notes: Typically in sugar beet, gravel and coal traffic.
Dimensions: 36'-0" IL Capacity:
Comments: Built 1905.02. Wood sides. Ex-Wheeling & Lake Erie Railway. Retired by mid 1930s.
ORER car totals
& dates:
110 GBW 4609 to 4647   (20 cars, odd nos. only)
ORER description: AAR Mech. Designation:
Dimensions: 36'-0" IL Capacity: 80000 lbs
Comments: Built 1901. Wood sides. Ex-Hocking Valley. On roster 1923.12 and 1924.01. Scrapped 1934-1938.
ORER car totals
& dates:
111 GBW 4801 to 4879   (40 cars, odd nos. only)
ORER description: Hopper, Stl., Odd Nos. AAR Mech. Designation: HM
ORER Notes: Individual numbers of cars in series 4801 to 4879 differing in dimensions and cubical capacity from other cars in same series; inside height 7 ft. 2 in., outside height from rail to top of sides 10 ft. 11 in., capacity 1,922 cu.ft.: 4803 4807 4817 4821 48
Dimensions: 30'-5" IL x 9'-6" IW x 6'-4" IH Capacity: 1682 cu. ft.; 100000 lbs
Comments: Built 1905.
ORER car totals
& dates:
40 (7/40); 0 (4/50);
112 GBW 4901 to 4913   (7 cars, odd nos. only)
ORER description: Hopper, Stl., Odd Nos. AAR Mech. Designation: HM
Dimensions: 30'-5" IL x 9'-6" IW x 6'-8" IH Capacity: 1785 cu. ft.; 100000 lbs
Comments: Built Pressed Steel car Co. 1914.
ORER car totals
& dates:
7 (7/40); 0 (4/50);
113 GBW 5500 to 5534   (35 cars)
ORER description: Gond., Stl., Roller Bearings AAR Mech. Designation: GB
Dimensions: 52'-6" IL x 9'-6" IW x 5'-0" IH Capacity: 2500 cu. ft.; 196000 lbs
Comments: Built Constructora Nacional de Carros de Ferrocarril (CNCF) 1983.10. 14 side panels, 12 of them with pressed corrugations, no corner posts, and formed non-terminating ends reinforced by two steel straps. Identical to MP 643550-643821 series built in the same year. Assigned to scrap iron loading, at Betten Processing, Green Bay. Kept GBW markings until sale from the WC sometime after 1997.
ORER car totals
& dates:
0 (1/83); 35 (1/84); 35 (1/86); 35 (1/87); 35 (1/88); 35 (1/89); 35 (1/90); 35 (4/91); 35 (1/92); 35 (7/93);
Photos: 5510   5533
114 GBW 6000 to 6298   (150 cars, even nos. only)
ORER description: Box, Even Nos. AAR Mech. Designation: XM
ORER Notes: Boxcar red with 'standard' GBW lettering from 1950s onward; at least #6070 was painted bright red by 1956.
Dimensions: 40'-6" IL x 8'-6" IW x 8'-7" IH Capacity: 2955 cu. ft.; 80000 lbs
Doors: 6'-0" W x 8'-3" H End doors (ft. in.) 1'-2" W x 0'-8" H
Comments: Built Pressed Steel Car Co. 1925.09. Z-bar Howe truss framing and Hutchins roof, 6' doors. Lumber doors on 'A' end of car. Identical to CM&StP 708500-713999, perhaps the GB&W's order was add to CM&StP's order. Boxcar red; large 'X' on door of some cars in 1930s, red & white herald on door in 1950s-60s.
ORER car totals
& dates:
148 (7/40); 146 (4/50); 144 (4/52); 144 (1/55); 139 (1/60); 103 (10/62); 77 (4/64); 36 (1/65); 11 (4/66); 3 (7/67); 0 (4/69);
Photos: 6056   6062   6120   6144   6156
115 GBW 6000 to 6074   (75 cars)
ORER description: Covd. Hopper AAR Mech. Designation: LO
Dimensions: Capacity: 3000 cu. ft.; 205000 lbs
Comments: Built Trinity Industries 1990.11 (lot 2117). Trinity 2980 cu.ft. design. Stencilled capacity 3000 cu.ft.
ORER car totals
& dates:
0 (1/90); 75 (4/91); 75 (1/92); 75 (7/93);
Photos: 6006
116 GBW 6075 to 6099   (25 cars)
ORER description: Covd. Hopper AAR Mech. Designation: LO
Dimensions: Capacity: 3000 cu. ft.; 200000 lbs
Comments: Built U.S. Railway Equipment (Evans Products Co.) 1981.07 to 1981.09 (lot 1808). Ex- GBW 9000-9099 to USLX 1700-1724 to GBW 6075-6099 to ITLX 30669-30702.
ORER car totals
& dates:
0 (1/90); 25 (4/91); 25 (1/92); 25 (7/93);
117 GBW 7000 to 7049   (50 cars)
ORER description: Box, Stl., 10 In. End of Car Cush., Nailable Stl. Flr., Roller Bearings, Strap Anchors, 50K AAR Mech. Designation: XM
Dimensions: 50'-6" IL x 9'-6" IW x 11'-1" IH Capacity: 5347 cu. ft.; 154000 lbs
Doors: 10'-0" W x 10'-5" H
Comments: Built FMC Corp. 1979.04. Exterior post, sliding door. Used in general service. Many of the other 7000- series boxcars went to various shortlines, such as the SRN (car series 5500-), HS (car series 6400-), NOKL, VB, GMRC, YKR (9000- series) & AZRC, among others. Painted yellow, black lettering; red & white herald.
ORER car totals
& dates:
0 (1/79); 50 (1/80); 50 (1/81); 50 (1/82); 50 (1/83); 50 (1/84); 50 (1/86); 50 (1/87); 50 (1/88); 50 (1/89); 50 (1/90); 50 (4/91); 50 (1/92); 43 (7/93);
Photos: 7010   7046
118 GBW 7050 to 7199   (150 cars)
ORER description: Box, Stl., 10 In. End of Car Cush., Nailable Stl. Flr., Roller Bearings, Strap Anchors, 50K AAR Mech. Designation: XM
Dimensions: 50'-7" IL x 9'-6" IW x 11'-0" IH Capacity: 5300 cu. ft.; 154000 lbs
Doors: 10'-0" W x 10'-5" H
Comments: Built ACF Industries 1979.06 (lot 11-06860). Plate C exterior-post boxcars, 7-panel sides, 6-rib non-terminating ends, overhanging diagonal panel roof, full-length reinforced straight side sill, sliding door. Used in general service. Some cars to HS 6400- series after 1993. Darker than normal yellow (similar in color to GBW 7450-7549) with black lettering, red & white heralds.
ORER car totals
& dates:
0 (1/79); 150 (1/80); 150 (1/81); 150 (1/82); 150 (1/83); 150 (1/84); 150 (1/86); 150 (1/87); ? (1/88); 149 (1/89); 68 (1/90); ? (4/91); 69 (1/92); 34 (7/93);
Photos: HS 6469
119 GBW 7200 to 7407   (95 cars)
ORER description: Box, Stl., 10 In. End of Car Cush., Nailable Stl. Flr., Roller Bearings, Strap Anchors, Single Plug Door, 50K AAR Mech. Designation: XM
Dimensions: 50'-7" IL x 9'-6" IW x 11'-0" IH Capacity: 5300 cu. ft.; 154000 lbs
Doors: 10'-0" W x 10'-3" H
Comments: Built ACF Industries 1979.05. Plate C exterior-post boxcars, 7-panel sides, 6-rib non-terminating ends, overhanging diagonal panel roof, full-length reinforced straight side sill, plug door. Used in general service. #7265 was destroyed on 1981.03.19. 75 cars to SOO 178882-178956 on 1983.08 (SOO cars to MR 178882-178956 1986.12, to Canadian National in early 1987 to Golden Triangle Railroad 31xx by 2006).
ORER car totals
& dates:
0 (1/79); 95 (1/80); 95 (1/81); 94 (1/82); 94 (1/83); 19 (1/84); 19 (1/86); 19 (1/87); 19 (1/88); 19 (1/89); 19 (1/90); 19 (4/91); 19 (1/92); 19 (7/93);
Photos: 7268   7369
120 GBW 7450 to 7649   (200 cars)
ORER description: Box, Stl., 10 In. End of Car Cush., Nailable Stl. Flr., Roller Bearings, Strap Anchors, 50K AAR Mech. Designation: XM
Dimensions: 50'-6" IL x 9'-6" IW x 11'-0" IH Capacity: 5288 cu. ft.; 154000 lbs
Doors: 10'-0" W x 10'-4" H
Comments: Built Evans Products Co. / Seico 1979.08 thru 1979.10 (lot 1445). Plate C with nonterminating box corrugated ends. Short, straight side sill, reinforced under door; no corner posts; diagonal panel roof. 7450-7549 (dark yellow) were normally assigned to Procter & Gamble in Green Bay; 7550-7649 (blue) were typically assigned to American Can in Green Bay. By 1987 cars were assigned to general service. 120 cars from the series went to Sabine River & Northern SRN 5580-5699 in 1989. The blues and yellows were pretty well mixed together when the cars were renumbered. Of those 120, 30 were recently relettered and renumbered into HS series 72157-72186. The remaining 76 were relettered IATR at about the time the Wisconsin Central took over the Fox Valley & Western (GBW's successor). 7450- 7549 were darker than normal yellow; 7550 to 7599+ were blue; many of 7600-7649 were standard GBW yellow, but at least 7600, 7601, 7604, 7607, 7608, 7610, 7611, 7612, 7613, 7617, 7619, 7622, 7625, 7632, 7633, 7634, 7637, 7641, 7644, 7645, 7648 were blue.
ORER car totals
& dates:
0 (1/79); 200 (1/80); 200 (1/81); 200 (1/82); 200 (1/83); 200 (1/84); 200 (1/86); 200 (1/87); ? (1/88); 199 (1/89); 79 (1/90); 79 (4/91); 79 (1/92); 76 (7/93);

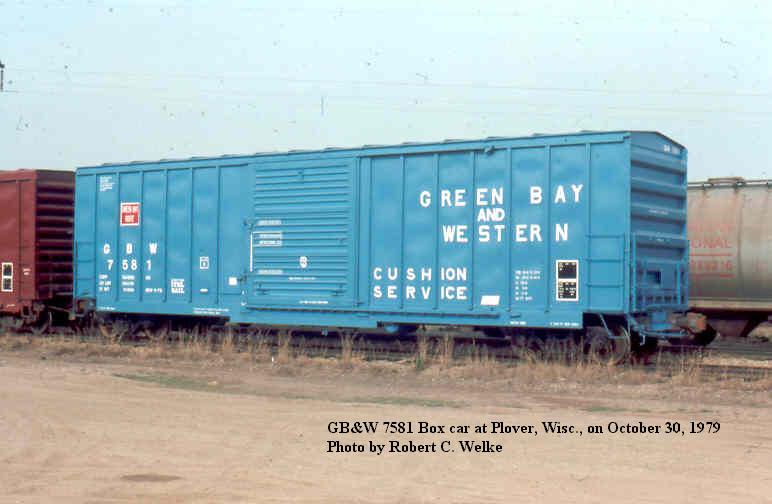

Photos: 7537   7546   7581   7604   7613
121 GBW 8000 to 8197   (198 cars)
ORER description: Box, Stl., 10 In. End of Car Cush., Nailable Stl. Flr., Roller Bearings, Strap Anchors, 50K AAR Mech. Designation: XM
Dimensions: 50'-6" IL x 9'-6" IW x 11'-1" IH Capacity: 5347 cu. ft.; 154000 lbs
Doors: 10'-0" W x 10'-4" H
Comments: Built FMC Corp. 1977.12 (lot 17882). Used in general service. Ex Providence & Worcester (PW) 404-703. #8000-8049 to Marinette, Tomahawk and Western Railroad (MTW) #8000-8049 in 1984, to Chattahoochee Industrial (CIRR) #8000-8049 in 1993. #8051-8197 converted from 70-ton to 100-ton boxcars and renumbered GBW 10100-10243 in 1990; to IATR; to FCRD. Red with a white door. Some had the P&W logo and billboard lettering fully painted over; others received minimal patching with GBW reporting marks and a new road number.
ORER car totals
& dates:
0 (1/81); 198 (1/82); 198 (1/83); 197 (1/84); 147 (1/86); 147 (1/87); ? (1/88); 146 (1/89); 144 (1/90); 1 (4/91); 1 (1/92); 0 (7/93);
Photos: 8077
122 GBW 8000 to 8098   (50 cars, even nos. only)
ORER description: Box, Even Nos. AAR Mech. Designation: XM
Dimensions: 40'-6" IL x 8'-6" IW x 10'-0" IH Capacity: 3443 cu. ft.; 80000 lbs
Doors: 6'-0" W x 8'-3" H End doors (ft. in.) 1'-2" W x 0'-8" H
Comments: Built 1925. Outside braced wood cars, four panels each side of door. Lumber doors on 'A' end of car. Some sold to paper mills and used into the 1970s.
ORER car totals
& dates:
49 (7/40); 48 (4/50); 48 (4/52); 45 (1/55); 43 (1/60); 33 (10/62); 23 (4/64); 8 (1/65); 3 (4/66); 0 (7/67);
Photos: 8020
123 GBW 8100 to 8198   (50 cars, even nos. only)
ORER description: Box, Stl. Und., Even Nos. AAR Mech. Designation: XM
Dimensions: 40'-6" IL x 9'-2" IW x 10'-0" IH Capacity: 3713 cu. ft.; 80000 lbs
Doors: 6'-0" W x 9'-6" H End doors (ft. in.) 1'-2" W x 0'-10" H
Comments: Built Bettendorf Co. 1930.09. Single sheathed. Lumber doors on 'A' end of car. Similar to CMStP&P car order from 1930.09.
ORER car totals
& dates:
50 (7/40); 48 (4/50); 48 (4/52); 48 (1/55); 45 (1/60); 43 (10/62); 42 (4/64); 41 (1/65); 34 (4/66); 20 (7/67); 3 (4/69); 2 (1/70); 0 (4/71);

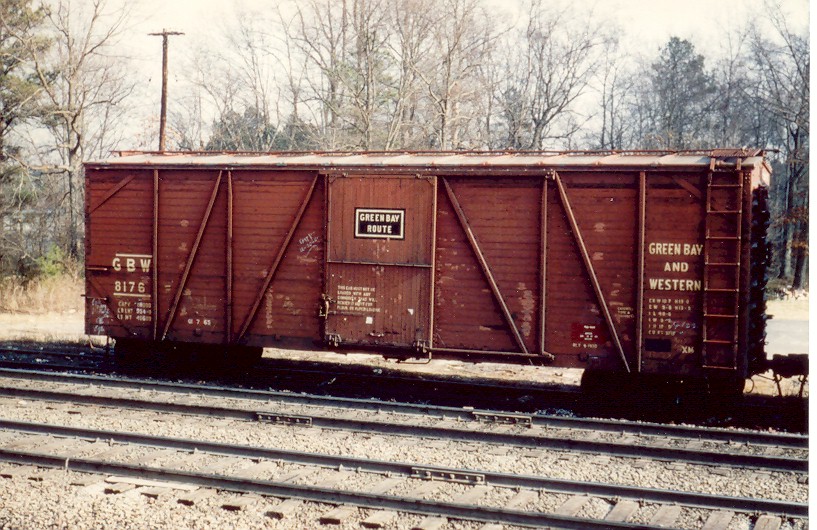

Photos: 8176
124 GBW 8200 to 8299   (224 cars)
ORER description: Box, Stl., 10 In. End of Car Cush., Nailable Stl. Flr., Roller Bearings, Strap Anchors, 50K AAR Mech. Designation: XM
Dimensions: 50'-6" IL x 9'-6" IW x 11'-0" IH Capacity: 5288 cu. ft.; 154000 lbs
Doors: 10'-0" W x 10'-4" H
Comments: Built Evans-SIECO 1979.07-08 (lot (work order) 1445). Exterior post. Ex- Wabash Valley Railroad WVRC 8100-8199, to GBW in 1981. To ASAB 8300-8399 in 1986. Some (GBW #8280) with Wabash Valley Railroad Company lettering and logo & GBW reporting marks.
ORER car totals
& dates:
0 (1/81); 100 (1/82); 100 (1/83); 224 (1/84); 134 (1/86); 0 (1/87);
125 GBW 8302 to 8424   (34 cars)
ORER description: Box, Stl., 10 In. End of Car Cush., Nailable Stl. Flr., Roller Bearings, Strap Anchors, 50K AAR Mech. Designation: XM
Dimensions: 50'-6" IL x 9'-6" IW x 11'-1" IH Capacity: 5347 cu. ft.; 154000 lbs
Doors: 10'-0" W x 10'-5" H
Comments: Built FMC Corp. 1979.04. Exterior post. Used in general service. Ex-New Orleans Public Belt Railroad NOPB 3975-4099. To HS #6400- series. Orange cars had GBW reporting marks and numbers applied, cars still had NOPB herald.
ORER car totals
& dates:
0 (1/86); 34 (1/87); 34 (1/88); 34 (1/89); 34 (1/90); 33 (4/91); 33 (1/92); 0 (7/93);

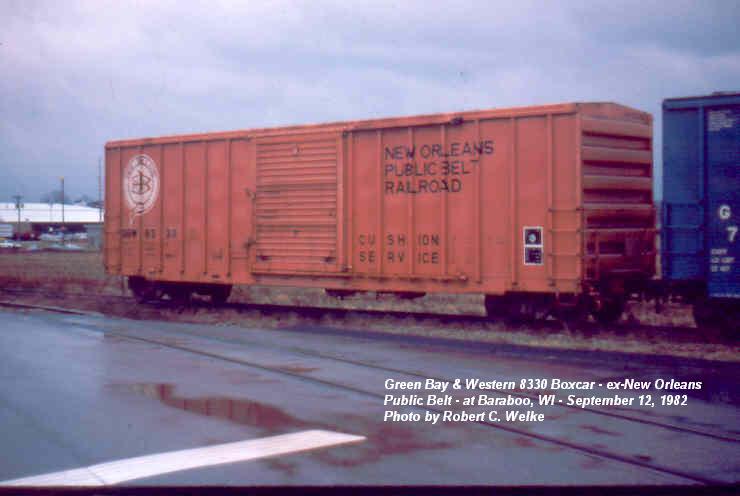

Photos: 8330
126 GBW 9000 to 9099   (100 cars)
ORER description: Covd. Hopper AAR Mech. Designation: LO
Dimensions: 36'-6" IL x 10'-0" IW Capacity: 3000 cu. ft.; 200000 lbs
Comments: Built U.S. Railway Equipment (Evans Products Co.) 1981.07 - 1981.09 (lot 1808). Two-bays with 12 side panels and eight round roof hatches. Most assisgned to Badger Mining, Taylor, Wis.; a few (9027, 9049, 9052, 9071, 9099) assigned to salt cake (sodium sulfate) loading at Green Bay Packaging. GBW 9002, 9003, 9006, 9008, 9010, 9011, 9015, 9021, 9026, 9033, 9034, 9046, 9051, 9053, 9054, 9062, 9063, 9066, 9072, 9073, 9076, 9080, 9084, 9095, 9098 to USLX 1700-1724 1987.02; later to GBW 6075-6099 to ITLX 30669-30702. GBW 9082, 9083, 9085-9094, 9096, 9097, 9099 to WC 6100- series 1988.07, with GB&W billboard lettering and herald painted out. Remaining cars to Hartford & Slocomb after 1993, later Riverport Railroad (RVPR) 3000- series. Yellow with black outline herald.
ORER car totals
& dates:
0 (1/81); 100 (1/82); 100 (1/83); 100 (1/84); 100 (1/86); 100 (1/87); ? (1/88); 60 (1/89); 60 (1/90); 60 (4/91); 58 (1/92); 58 (7/93);

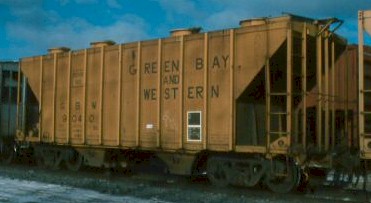

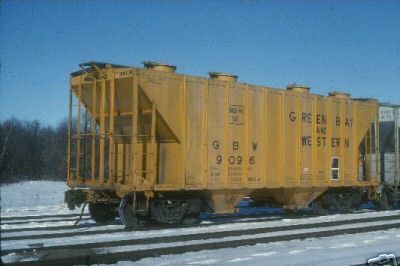

Photos: 9001   9005   9005   9012   9040   9081   9088   9096
127 GBW 10000 to 10099   (100 cars)
ORER description: Box, Stl., Roller Bearings, Plug Doors, 15 In. End of Car Cush., Strap Anchors, Nailable Stl. Flr., 50K AAR Mech. Designation: XM; XP (1/88)
Dimensions: 50'-6" IL x 9'-6" IW x 11'-1" IH Capacity: 5327 cu. ft.; 191000 lbs
Doors: 12'-0" W x 10'-3" H
Comments: Built FMC Corp. 1979.04. Plate C. External post. Plug door. Ex- East Camden & Highland EACH 2351-2499 (not sequential). 25 cars to GBW 10000-10024 (1981.10); additional 25 cars to GBW 10025-10049 (1982.04); 50 cars to GBW 10050-10099 (1983.11). GBW 10099 to EACH 2438 (1984.06); later to QC 77227 (1987). GBW 10002, 10025 to QC 77248-77249 (1987). Typically assingned to paper loading at Consolidated Papers in Wisconsin Rapids, Stevens Point and Biron. Modified to AAR XP designation by 1987.06. Went to HS 14200-14296 series (roofs were raised and capacity increased to 6047 cu.ft. at that time, repainted green with white markings for the Stone Container Corporation), later (ca. 1995) 60 cars went to MDW 4100-4159 and 37 cars to SLR 3000- series. Orange with large white band on side of car.
ORER car totals
& dates:
0 (1/82); 50 (1/83); 100 (1/84); 99 (1/86); 99 (1/87); 97 (1/88); 97 (1/89); 97 (1/90); 0 (4/91);

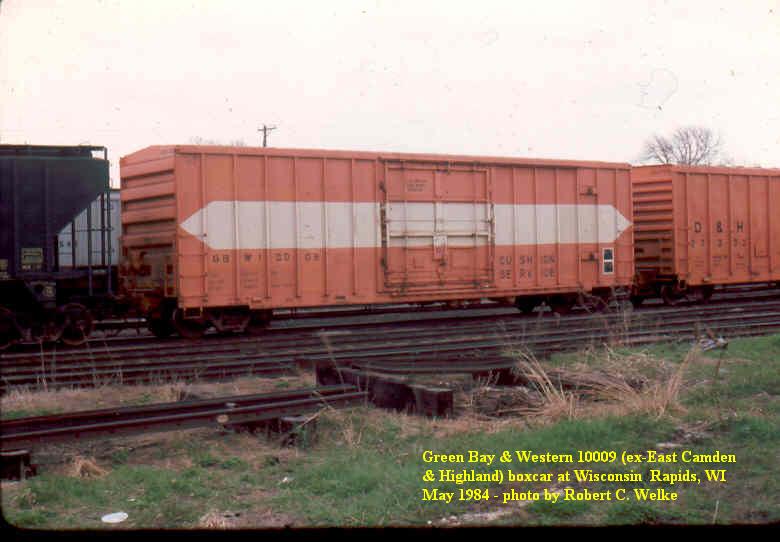

Photos: 10009   10063
128 GBW 10100 to 10243   (144 cars)
ORER description: Box, Stl., Roller Bearings, Plug Doors, 15 In. End of Car Cush., Strap Anchors, Nailable Stl. Flr., 50K AAR Mech. Designation: XP
Dimensions: 50'-6" IL x 9'-6" IW x 11'-1" IH Capacity: 5347 cu. ft.; 196000 lbs
Doors: 10'-0" W x 10'-4" H
Comments: Built FMC Corp. Ex Providence & Worcester (PW) 404-703 to GBW 8000-8197. GBW 8051-8197 converted from 70-ton to 100-ton boxcars and renumbered GBW 10100-10243 in 1990. To Iowa Traction Railroad (IATR) in same car series.
ORER car totals
& dates:
0 (1/89); 144 (1/90); 143 (4/91); 141 (1/92); 141 (7/93);
129 GBW 11000 to 11001   (2 cars)
ORER description: Box, Stl. AAR Mech. Designation: XP
Dimensions: 50'-6" IL x 9'-6" IW x 11'-1" IH Capacity: 5347 cu. ft.; 197000 lbs
Doors: 10'-0" W x 10'-4" H
Comments: Built FMC Corp.
ORER car totals
& dates:
0 (4/91); 2 (1/92); 2 (7/93);
130 GBW 11100 to 11235   (16 cars)
ORER description: Refrig. AAR Mech. Designation: RPL
Dimensions: 50'-0" IL x 9'-0" IW x 9'-0" IH Capacity: 4050 cu. ft.; 132000 lbs
Doors: 9'-0" W x 8'-8" H
Comments: Built Pacific Car & Foundy 1970.06 & 1970.08. Ex- Bangor & Aroostook 11100-11149, 11200-11249, to WSOR (same numbers), then to GBW (same numbers). Specific car numbers were: 11102, 11105, 11108-1110, 11132-11133, 111136, 11138, 11216, 11221, 11224-11225, 11232, 11235. Still had BAR logo and only minimal patching of reporting marks.
ORER car totals
& dates:
0 (1/86); 15 (1/87); ? (1/88); 16 (1/89); 16 (1/90); 0 (4/91);
Photos: 11138
131 GBW 12234 to 12798   (3 cars)
ORER description: Refrig., Stl., Movable Blkhds AAR Mech. Designation: RPL
Dimensions: 51'-10" IL x 9'-1" IW x 9'-6" IH Capacity: 4498 cu. ft.; 166000 lbs
Doors: 10'-6" W x 9'-2" H
Comments: Built Pacific Car & Foundry
ORER car totals
& dates:
0 (1/82); 3 (1/83); 3 (1/84); 0 (1/86);
132 GBW 13550   (1 car)
ORER description: Box, All Stl. AAR Mech. Designation: XAP
ORER Notes: Car no. 13550 is equipped with baskets for automobile castings.
Dimensions: 50'-6" IL x 9'-2" IW x 10'-0" IH Capacity: 4587 cu. ft.; 100000 lbs
Doors: 11'-7" W x 8'-6" H
Comments:
ORER car totals
& dates:
0 (10/62); 1 (4/64); 1 (1/65); 1 (4/66); 1 (7/67); 1 (4/69); 0 (1/70);
133 GBW 14000 to 14048   (25 cars, even nos. only)
ORER description: Auto., Stl. Und., Comp. Super., Staggered Side Doors AAR Mech. Designation: XM
ORER Notes: Cars in series 14000 to 14048 are equipped with Evans Auto Loaders - Inside height and cubical capacity as follows: with Auto Loaders in position for loading automobiles - Inside height 10 ft., capacity 3,713 cu.ft. With Auto Loaders raised in stored posi
Dimensions: 40'-6" IL x 9'-2" IW x 10'-0" (9'-6"") IH Capacity: 3713 cu. ft.; 80000 lbs
Doors: 11'-11" W x 9'-6" H End doors (ft. in.) 1'-2" W x 0'-10" H
Comments: Built Bettendorf Co. 1930. 14000- and 15000- series were similar externally; 14000- boxcars had Evans auto loaders, 15000- did not. Originally built with double 6' doors, 31 cars rebuilt 10/56 with single doors. Lumber doors on 'A' end of car.
ORER car totals
& dates:
25 (7/40); 25 (4/50); 25 (4/52); 24 (1/55); 22 (1/60); 40 (includes 14000- & 15000-) (10/62); 38 (4/64); 35 (1/65); 26 (4/66); 18 (7/67); 4 (4/69); 3 (1/70); 0 (4/71);
Photos: 14026   14038
134 GBW 15000 to 15098   (50 cars, even nos. only)
ORER description: Auto., Stl. Und., Comp. Super., Staggered Side Doors AAR Mech. Designation: XM
Dimensions: 40'-6" IL x 9'-2" IW x 10'-0" IH Capacity: 3713 cu. ft.; 80000 lbs
Doors: 11'-11" W x 9'-6" H End doors (ft. in.) 1'-2" W x 0'-10" H
Comments: Built Bettendorf Co. 1930. Double door auto cars. 14000- and 15000- series were similar externally; 14000- boxcars had Evans auto loaders, 15000- did not. Originally built with double 6' doors, Rebuilt 10/56 with single doors. Lumber doors on 'A' end of car.
ORER car totals
& dates:
25 (7/40); 25 (4/50); 24 (4/52); 24 (1/55); 21 (1/60); 0 (see 14000-) (10/62);

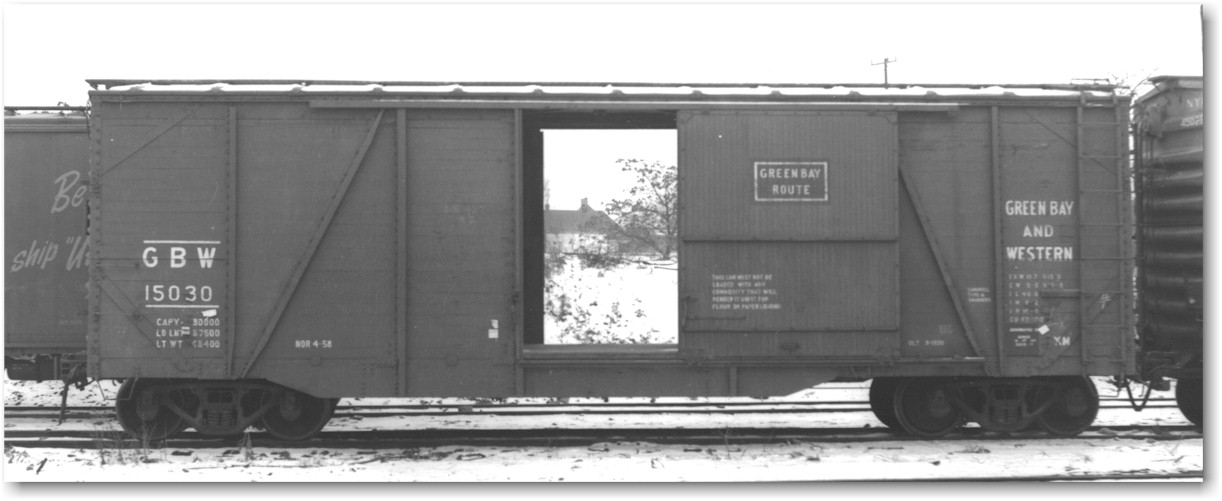

Photos: 7132   15030
135 GBW 15056 , 15065, 15066, 15074   (4 cars)
ORER description: Box, Stl., Auto Parts AAR Mech. Designation: XAP; XP (4/69)
Dimensions: 50'-6" IL x 9'-4" IW x 10'-6" IH Capacity: 4955 cu. ft.; 100000 lbs
Doors: 15'-0" W x 9'-10" H
Comments:
ORER car totals
& dates:
0 (4/64); 4 (1/65); 4 (4/66); 4 (7/67); 4 (4/69); 4 (1/70); 2 (4/71); 0 (1/72);
136 GBW 15302 to 15348   (7 cars)
ORER description: Box, Stl., Stagg. Doors AAR Mech. Designation: XAP
ORER Notes: Cars in series 15302 to 15348 are equipped with racks for automobile engine loading.
Dimensions: 50'-6" IL x 9'-2" IW x 10'-5" IH Capacity: 4838 cu. ft.; 100000 lbs
Doors: 15'-0" W x 9'-9" H
Comments:
ORER car totals
& dates:
0 (10/62); 7 (4/64); 4 (1/65); 3 (4/66); 3 (7/67); 3 (4/69); 1 (1/70); 0 (4/71);
137 GBW 15330   (1 car)
ORER description: Box, Stl., Stagg. Doors AAR Mech. Designation: XP
ORER Notes: Car numbered 15330 is equipped with racks for automobile engine loading.
Dimensions: 50'-6" IL x 9'-2" IW x 10'-5" IH Capacity: 4838 cu. ft.; 100000 lbs
Doors: 15'-0" W x 9'-9" H
Comments: May be GBW 15302; outside length is 2 ft. 6 in. longer than 15302.
ORER car totals
& dates:
0 (1/70); 1 (4/71); 1 (1/72); 1 (4/72); 0 (4/73);
138 GBW 16000 to 16299   (300 cars)
ORER description: Box, Stl., 10 In. End of Car Cush., Nailable Stl. Flr., Strap Anchors, 50K AAR Mech. Designation: XP
Dimensions: 50'-6" IL x 9'-6" IW x 11'-2" IH Capacity: 5347 cu. ft.; 154000 lbs
Doors: 10'-0" W x 10'-5" H
Comments: Built FMC Corp. 1979.12 & 1980.01. Exterior post. Normally assigned to Proctor & Gamble in Green Bay. Reassigned AAR class XM ca. 1985. Fifty cars to NOKL #16100-16149 about 1993 (only reporting marks revised) and later Albany & Eastern (AERC) #5100-5147. Remainder went to SSAM #25200- 25442, originally just restenciled SSAM but keeping road numbers, but fully repainted by the mid 1990s, then reassigned to WCCL #25200-25442 about 2000, finally to East Erie Commercial (EEC).
ORER car totals
& dates:
0 (1/80); 300 (1/81); 299 (1/82); 299 (1/83); 299 (1/84); 299 (1/86); 299 (1/87); 299 (1/88); 299 (1/89); 298 (1/90); 298 (4/91); 298 (1/92); 297 (7/93);
Photos: 16006   16103   16256   16282
139 GBW 16511 , 16512   (2 cars)
ORER description: Box AAR Mech. Designation: XML
ORER Notes: Cars numbered 16511 and 16512 are equipped with DF Belt Rails and Cross Bars for salt loading.
Dimensions: 50'-6" IL x 9'-2" IW x 10'-5" IH Capacity: 4860 cu. ft.; 140000 lbs
Doors: 9'-0" W x 9'-9" H
Comments: Leased from DTI #16500-16699.
ORER car totals
& dates:
0 (4/64); 2 (1/65); 2 (4/66); 2 (7/67); 1 (4/69); 0 (1/70);
140 GBW 18056   (1 car)
ORER description: Box, Stl.. Cush. Und. DF Equipped AAR Mech. Designation: XMP
ORER Notes: Car no. 18056 is equipped for glass loading.
Dimensions: 50'-6" IL x 9'-2" IW x 10'-5" IH Capacity: 4860 cu. ft.; 140000 lbs
Doors: 9'-0" W x 9'-10" H
Comments:
ORER car totals
& dates:
0 (10/62); 1 (4/64); 1 (1/65); 1 (4/66); 1 (7/67); 0 (4/69);
141 GBW 19000 to 19059   (60 cars)
ORER description: Refrig., All Stl. AAR Mech. Designation: RB
Dimensions: 40'-0" IL x 9'-0" IW x 9'-1" IH Capacity: 3270 cu. ft.; 100000 lbs
Doors: 8'-0" W x 8'-9" H
Comments: Built Fruit Growers Express Minor details differed between cars.
ORER car totals
& dates:
0 (1/65); 60 (4/66); 60 (7/67); 60 (4/69); 60 (1/70); 60 (4/71); 58 (1/72); 58 (4/72); 59 (4/73); 57 (1/74); 0 (4/75);
Photos: 19029
142 GBW 20000 to 20040   (41 cars)
ORER description: Refrig., All Stl. AAR Mech. Designation: RBL
ORER Notes: Cars in series 20000 to 20039 are equipped with removable bulkheads.
Dimensions: 40'-0" IL x 9'-0" IW x 9'-1" IH Capacity: 3270 cu. ft.; 100000 lbs
Doors: 8'-0" W x 8'-9" H
Comments:
ORER car totals
& dates:
0 (1/65); 40 (4/66); 41 (7/67); 41 (4/69); 41 (1/70); 41 (4/71); 39 (1/72); 40 (4/72); 40 (4/73); 40 (1/74); 40 (4/75); 40 (1/76); 1 (1/77); 1 (7/78); 0 (1/79);
143 GBW 21000 to 21038   (39 cars)
ORER description: Refrig., DF Belt Rails, Cross Bars & Deck Boards AAR Mech. Designation: RBL
Dimensions: 40'-0" IL x 9'-2" IW x 9'-1" IH Capacity: 3330 cu. ft.; 10000 lbs
Doors: 8'-1" W x 8'-9" H
Comments: Built American Car & Foundry 1955.04-1955.05 (lot 01-4444). Plug doors. Leased from FGE; from RBNX series 81460-81499. Shopped 4-68, AX DR. DF-1 equipped. Chrome yellow, black lettering, red & white herald.
ORER car totals
& dates:
0 (4/66); 38 (7/67); 38 (4/69); 38 (1/70); 38 (4/71); 39 (1/72); 39 (4/72); 39 (4/73); 39 (1/74); 38 (4/75); 38 (1/76); 38 (1/77); 37 (7/78); 31 (1/79); 22 (1/80); 16 (1/81); 0 (1/82);
Photos: 21007   21014   21014
144 GBW 22000 to 22028   (29 cars)
ORER description: Refrig., All Stl. Insulated, Side Wall Fillers, Hydraulic Cush. Und., AAR Mech. Designation: RBL
ORER Notes: Cars numbered 22000 to 22004 are equipped with 48 pallets each.
Dimensions: 50'-1" IL x 9'-3" IW x 9'-11" IH Capacity: 4589 cu. ft.; 140000 lbs
Doors: 10'-0" W x 9'-3" H
Comments: Built North American Car Corp 1967 (lot A66B1). Superior plug doors, sides by Youngstown, underframes by International Steel, Stanray roofs and Wabcopac truck mounted brakes. Leased from North American Car Corporation.
ORER car totals
& dates:
0 (4/66); 29 (7/67); 29 (4/69); 29 (1/70); 29 (4/71); 29 (1/72); 29 (4/72); 29 (4/73); 28 (1/74); 27 (4/75); 27 (1/76); 26 (1/77); 26 (7/78); 26 (1/79); 25 (1/80); 24 (1/81); 0 (1/82);
145 GBW 22030 to 22039   (60 cars)
ORER description: Refrig., Equipco Load Dividers & * Position Side Fillers AAR Mech. Designation: RBL
ORER Notes: Individual numbers of cars in series 22030 to 22039 equipped with wooden pallets: 22030 to 22033.
Dimensions: 50'-1" IL x 9'-2" IW x 9'-11" IH Capacity: 4589 cu. ft.; 140000 lbs
Doors: 10'-0" W x 9'-3" H
Comments: Double plug doors. Many converted to 22040-22089 with 14 ft. 0 in. doors (4/71).
ORER car totals
& dates:
0 (7/67); 60 (4/69); 60 (1/70); 10 (4/71); 10 (1/72); 10 (4/72); 10 (4/73); 10 (1/74); 10 (4/75); 10 (1/76); 10 (1/77); 10 (7/78); 10 (1/79); 10 (1/80); 10 (1/81); 10 (1/82); 0 (1/83);
146 GBW 22040 to 22089   (50 cars)
ORER description: Refrig., Equipco Load Dividers & * Position Side Fillers AAR Mech. Designation: RBL
Dimensions: 50'-0" IL x 9'-2" IW x 9'-10" IH Capacity: 4589 cu. ft.; 140000 lbs
Doors: 14'-0" W x 9'-4" H
Comments: Built ACF Industries / Evans 1969.01 (lot 11-06215 / 669). Double plug doors (8'+6'). Built by ACF for Evans. GBW 22063, 22079, 22088 assigned to Larsen Caning, Green Bay; GBW 22048-22050 assigned to Hardy Salt Co., Manistee, Mich; remainder for unassigned perishable loading. Yellow, black ends, black lettering, red & white herald.
ORER car totals
& dates:
0 (1/70); 50 (4/71); 48 (1/72); 48 (4/72); 48 (4/73); 47 (1/74); 46 (4/75); 46 (1/76); 43 (1/77); 43 (7/78); 43 (1/79); 43 (1/80); 43 (1/81); 43 (1/82); 43 (1/83); 43 (1/84); 42 (1/86); 42 (1/87); 42 (1/88); 42 (1/89); 0 (1/90);
Photos: 22045
147 GBW 22090 to 22091   (2 cars)
ORER description: Refrig. AAR Mech. Designation: RBL
Dimensions: 51'-1" IL x 9'-3" IW x 10'-3 IH Capacity: 4843 cu. ft.; 139000 lbs
Doors: 10'-6" W x 9'-10" H
Comments: Built Fruit Growers Express 1970.08. From WRX 9350-9351 in 1971.
ORER car totals
& dates:
0 (4/71); 2 (1/72); 2 (4/72); 2 (4/73); 2 (1/74); 2 (4/75); 2 (1/76); 2 (1/77); 2 (7/78); 2 (1/79); 2 (1/80); 2 (1/81); 2 (1/82); 2 (1/83); 2 (1/84); 2 (1/86); 2 (1/87); 2 (1/88); 2 (1/89); 2 (1/90); 2 (4/91); 2 (1/92); 2 (7/93);
148 GBW 23000 to 23009   (10 cars)
ORER description: Refrig. AAR Mech. Designation: RB
ORER Notes: Outside lengths shown for cars in series 23000 to 23009 are as follows: 55 ft. 8 1/4 in. over strikers; 50 ft. 8 1/4 in. over end sills.
Dimensions: 50'-0" IL x 9'-4" IW x 9'-10" IH Capacity: 4595 cu. ft.; 150000 lbs
Doors: 10'-0" W x 9'-5" H
Comments: Plug door. Typically used for perishable loading at Manawa (presumably Sturm Foods) by the mmid 1980s. #23003 and #23007 were purchased by the Wisconsin & Calumet Railroad (now WSOR) from the scrapper for use as MofW cars. 23003 in North Milwaukee yard; 23007 in Waukzeka, Wis.
ORER car totals
& dates:
0 (4/66); 10 (7/67); 10 (4/69); 10 (1/70); 10 (4/71); 10 (1/72); 10 (4/72); 10 (4/73); 10 (1/74); 10 (4/75); 10 (1/76); 10 (1/77); 10 (7/78); 10 (1/79); 10 (1/80); 10 (1/81); 10 (1/82); 10 (1/83); 10 (1/84); 10 (1/86); 8 (1/87); 8 (1/88); 8 (1/89); 7 (1/90); 2 (4/91); 5 (1/92); 7 (7/93);
Photos: 23001
149 GBW 23010 to 23016   (7 cars)
ORER description: Refrig. AAR Mech. Designation: RB
Dimensions: 50'-0" IL x 9'-0" IW x 9'-1" IH Capacity: 4087 cu. ft.; 110000 lbs
Doors: 10'-0" W x 8'-9" H
Comments: Typically used for perishable loading at Manawa (presumably Sturm Foods) by the mid 1980s.
ORER car totals
& dates:
0 (4/71); 7 (1/72); 7 (4/72); 7 (4/73); 7 (1/74); 7 (4/75); 7 (1/76); 7 (1/77); 7 (7/78); 7 (1/79); 7 (1/80); 7 (1/81); 7 (1/82); 7 (1/83); 7 (1/84); 1 (1/86); 0 (1/87);
150 GBW 26638   (1 car)
ORER description: Box, Stl., Movable Blkhds. - Single Type, Roller Bearings, 25K AAR Mech. Designation: XL
Dimensions: 86'-6" IL x 9'-2" IW x 12'-9" IH Capacity: 10000 cu. ft.; 109000 lbs
Doors: 20'-0" W x 12'-9" H
Comments:
ORER car totals
& dates:
0 (1/74); 1 (4/75); 0 (1/76);
151 GBW 50000 to 50049   (50 cars)
ORER description: Refrig., Stl., Cush. Und., Movable Blkhds., Roller Bearings, 50K AAR Mech. Designation: RBL
Dimensions: 52'-6" IL x 9'-6" IW x 10'-6" IH Capacity: 5327 cu. ft.; 137000 lbs
Doors: 12'-0" W x 10'-0" H
Comments: Built Fruit Growers Express 1981.08. After WC takeover relettered as SSAM 50000-50049 (black patches over GBW reporting marks) and later received maroon paint as WC 50000-50049. Sold by CN in 2005 to DMM (Dansville and Mount Morris). In the post-GBW era they were frequently seen in Green Bay going to the E&LS and returning with loads of canned goods.
ORER car totals
& dates:
0 (1/82); 50 (1/83); 50 (1/84); 50 (1/86); 50 (1/87); 50 (1/88); 50 (1/89); 50 (1/90); 50 (4/91); 50 (1/92); 50 (7/93);
Photos: 50000
152 GBW 69005 to 69011   (2 cars)
ORER description: Box, Movable Blkhds. Single Type AAR Mech. Designation: XL
Dimensions: 86'-6" IL x 9'-2" IW x 12'-9" IH Capacity: 10000 cu. ft.; 109000 lbs
Doors: 20'-0" W x 12'-9" H
Comments: Built Thrall Car Manufacturing Co. 1966. Originally GBW #100-113 cars, returned from AA #69005,69011 lease. In AA orange paint scheme with GBW reporting marks. Marked with an 'SL' above the reporting marks and assigned to the Saline, Mich. Ford auto parts plant See GBW #100-102 for more information.
ORER car totals
& dates:
0 (4/71); 2 (1/72); 2 (4/72); 2 (4/73); 2 (1/74); 2 (4/75); 0 (1/76);
153 GBW 112000 to 112012   (10 cars)
ORER description: Box, Stl. AAR Mech. Designation: XML; XL (4/69)
ORER Notes: Cars in GBWRR series 112000 to 112009 are equipped with (DF) belt rails and Cross Bars for Special Loading.
Dimensions: 50'-6" IL x 9'-2" IW x 10'-6" IH Capacity: 4872 cu. ft.; 100000 lbs
Doors: 8'-0" W x 9'-10" H
Comments: Built General American Transportation Corp. 1950.11. Green car, GAEX reporting marks and triangle herald, white DF stripe right side of car. By the late 1960s at least some cars had GBW repoprting marks, a short diagonal "DF" stripe in the upper left hand corner of the car side, and a red "Green Bay Route" herald to the right of the door.
ORER car totals
& dates:
0 (1/60); 10 (10/62); 10 (4/64); 10 (1/65); 10 (4/66); 10 (7/67); 10 (4/69); 10 (1/70); 10 (4/71); 10 (1/72); 10 (4/72); 10 (4/73); 10 (1/74); 5 (4/75); 4 (1/76); 0 (1/77);
Photos: 112008   112008
154 GBW 300000 to 300198   (15 cars)
ORER description: Covd. Hopper AAR Mech. Designation: LO
Dimensions: 53'-3" IL x 10'-1" IW Capacity: 4750 cu. ft.; 200000 lbs
Comments: Built Thrall Car Manufacturing Co. 1981. Appears to be a Thrall 4750 cf covered hopper. Ex WSOR 300100-300199 series cars; the actual car numbers used in the series were GBW 300100, 300101, 300104, 3001121 3001221 3001251 3001281 3001331 3001351 3001381 3001401, 300161, 300172, 300189 and 300198. Gray, with simple painted out reporting marks and capacity data in black lettering.
ORER car totals
& dates:
0 (1/83); 15 (1/84); 15 (1/86); 15 (1/87); ? (1/88); 0 (1/89);
155 GBW 375400 to 375517   (15 cars)
ORER description: Box, Stl. AAR Mech. Designation: XP
Dimensions: 60'-8" IL x 9'-6" IW x 11'-6" IH Capacity: 6659 cu. ft.; 170000 lbs
Doors: 16'-0" W x 11'-0" H
Comments: Built Pullman-Standard Car Manufacturing Co. 1976.11 (lot 9834). Plate E. 10'+6' double doors. Ex- GTW 375400-375517 acquired via lease 1988.11.22. To IATR after 1992.10. Logo and name painted out, but cars kept the remaining lettering and car numbers.
ORER car totals
& dates:
0 (1/88); 16 (1/89); 16 (1/90); 8 (4/91); 8 (1/92); 8 (7/93);
Photos: 375516
156 GBW 01 to 09   (8 cars)
ORER description: Caboose, Way Freight AAR Mech. Designation: NE
Dimensions: Capacity: 0 lbs
Comments:
ORER car totals
& dates:
7 (3/1901); 7 (7/1904); 8 (2/1913); 8 (6/1917); 0 (7/40);
157 GBW 061 to 062   (2 cars)
ORER description: Caboose, Way Freight AAR Mech. Designation: NE
Dimensions: Capacity: 0 lbs
Comments:
ORER car totals
& dates:
2 (3/1901); 2 (7/1904); 0 (2/1913);
158 GBW X1 to X14018   (32 cars)
ORER description: Maint. of Way AAR Mech. Designation:
Dimensions: Capacity:
Comments:
ORER car totals
& dates:
32 (7/40); 24 (4/50); 23 (4/52); 22 (1/55); 23 (1/60); 19 (10/62); 17 (4/64); 12 (1/65); 14 (4/66); 7 (7/67); 8 (4/69); 8 (1/70); 7 (4/71); 8 (1/72); 8 (4/72); 8 (4/73); 0 (1/74);
159 GBW X414 , X415   (2 cars)
ORER description: Covd. Hopper AAR Mech. Designation:
Dimensions: 33'-0" IL x 10'-4" IW Capacity: 0 lbs
Comments: Built Pullman-Standard Car Manufacturing Co. 1949.06 (lot 5938A). 1935 AAR twin hopper rebuilt as covered hopper. Car totals included in GBW X032 to X5054 car totals. Rebuilt from KGB 414, 415 open hoppers by 1971. Yellow with black lettering, red & white herald.
ORER car totals
& dates:
Photos: 414   414
160 GFRX 9600 to 9614   (15 cars)
ORER description: Refrig., All Stl. AAR Mech. Designation: RBL
ORER Notes: Car in series GFRX 9600 to 9614 have 6 in. insulation and are equipped with Evans Loading Device.
Dimensions: 38'-7" IL x 8'-4" IW x 8'-0" IH Capacity: 2532 cu. ft.; 80000 lbs
Doors: 6'-0" W x 7'-2" H
Comments: Plug door.
ORER car totals
& dates:
0 (1/55); 15 (1/60); 15 (10/62); 2 (4/64); 2 (1/65); 2 (4/66); 2 (7/67); 2 (4/69); 2 (1/70); 2 (4/71); 2 (1/72); 2 (4/72); 2 (4/73); 1 (1/74); 1 (4/75); 1 (1/76); 1 (1/77); 1 (7/78); 1 (1/79); 1 (1/80); 0 (1/81);
161 GFRX 9601   (1 car)
ORER description: Refrig., Stl. AAR Mech. Designation: RB
Dimensions: 40'-0" IL x 8'-4" IW x 7'-11" IH Capacity: 2638 cu. ft.; 86000 lbs
Doors: 8'-0" W x 7'-7" H
Comments:
ORER car totals
& dates:
0 (1/77); 1 (7/78); 1 (1/79); 1 (1/80); 0 (1/81);
162 KGB 401 to 420   (20 cars)
ORER description: Hopper AAR Mech. Designation: HM
Dimensions: 33'-0" IL x 10'-4" IW Capacity: 2145 cu. ft.; 100000 lbs
Comments: Built Pullman-Standard Car Manufacturing Co. 1949.06 (lot 5938A). 1935 AAR twin hopper, with minor detail variations that are often referred to as 'alternative standard twin' - see Ed Hawkins article in Railway Prototype Cyclopedia #1. 8 panels. GBW 414 & 415 were converted to covered hoppers for engine sand service by 10/67; X414 usually at Green Bay and X415 usually at Stevens Point. X415 was last seen in April 2002. Loaded at C. Reiss Coal Co. (Green Bay) for Proctor & Gamble's East River paper mill (Green Bay) in the 1970s-1980s. The cars are identical to a batch of Illinois Central hoppers built at the same time. Originally red, assigned to GBW and painted yellow by 1967.
ORER car totals
& dates:
0 (7/40); 20 (4/50); 20 (4/52); 20 (1/55); 20 (1/60); 20 (10/62); 20 (4/64); 20 (1/65); 20 (4/66); 20 (7/67); 18 (4/69); 18 (1/70); 17 (4/71); 17 (1/72); 17 (4/72); 17 (4/73); 17 (1/74); 17 (4/75); 17 (1/76); 14 (1/77); 13 (7/78); 13 (1/79); 13 (1/80); 13 (1/81); 13 (1/82); 11 (1/83); 12 (1/84); 12 (1/86); 12 (1/87); ? (1/88); 0 (1/89);
Photos: 412   GBW 418   418
163 KGB 500 to 650   (75 cars, even nos. only)
ORER description: Box, Even Nos. AAR Mech. Designation: XM
Dimensions: 34'-0" IL x 8'-0" IW x 7'-0" IH Capacity: 1904 cu. ft.; 60000 lbs
Doors: 6'-0" W x 6'-9" H End doors (ft. in.) 2'-0" W x 2'-9" H
Comments: Built Haskell & Barker Co. 1900.11.
ORER car totals
& dates:
74 (7/1904); 71 (2/1913); 70 (6/1917); 0 (7/40);
164 KGB 800 to 1000   (100 cars, even nos. only)
ORER description: Box, Even Nos. AAR Mech. Designation: XM
Dimensions: 36'-0" IL x 8'-6" IW x 8'-0" IH Capacity: 2448 cu. ft.; 60000 lbs
Doors: 6'-0" W x 7'-10" H End doors (ft. in.) 2'-2" W x 2'-6" H
Comments: Built Haskell & Barker Co. 1904.09. Wood sheathed.
ORER car totals
& dates:
100 (7/1904); 96 (2/1913); 93 (6/1917); 0 (7/40);
165 KGB 4301 to 4339   (20 cars, odd nos. only)
ORER description: Gond., Fixed Ends AAR Mech. Designation: GB
Dimensions: 35'-10 1/2" IL x 8'-7" IW x 4'-4 3/4" IH Capacity: 1357 cu. ft.; 80000 lbs
Comments: Drop bottom, wood sides. Ex-W&LE, via General Equipment Co., NY.
ORER car totals
& dates:
1 (7/40); 0 (4/50);
166 KGB 4401 to 4419   (10 cars, odd nos. only)
ORER description: Hopper, Odd Nos. AAR Mech. Designation: HM
Dimensions: 30'-9" IL x 8'-11 1/2" IW x 6'-1"0 IH Capacity: 1579 cu. ft.; 100000 lbs
Comments: Drop bottom, wood sides. Ex-Virgininian, purchased via General Equipment Co. in 1922.09 for $8250 ($825 each).
ORER car totals
& dates:
10 (7/40); 0 (4/50);
167 KGB 4501 to 4569   (35 cars, odd nos. only)
ORER description: Hopper, Stl., Odd Nos. AAR Mech. Designation: HM
Dimensions: 30'-5" IL x 9'-6" IW x 6'-4" IH Capacity: 1682 cu. ft.; 100000 lbs
Comments: Built 1905. Drop bottom. Ex- Youngstown Sheet & Tube Co. Bought from dealer Briggs & Turivas in 1929. (No. 4521 4527 4531 4549 4551 4561: inside height 7 ft. 2 in.; capacity 1,922 cu.ft.
ORER car totals
& dates:
35 (7/40); 0 (4/50);
Photos: 4567
168 KGB 5000 to 5198   (100 cars, even nos. only)
ORER description: Box, Even Nos. AAR Mech. Designation: XM
Dimensions: 39 10 1/8" IL x 8'-7" IW x 7'-10 IH Capacity: 2679 cu. ft.; 80000 lbs
Doors: 5'-6" W x 7'-6" H End doors (ft. in.) 1'-6" W x 2'-0" H
Comments: Built Haskell & Barker Co. 1914.01 (lot 5079). Double-sheathed. Probably idenical to GB&W #2600-2798. Truss-rod boxcars with lumber doors on 'A' end of car. Outwardly similar to CB&W class XM-17/18 box cars (100000- series). Boxcar red; large 'X' on door of some cars in 1930s.
ORER car totals
& dates:
100 (6/1917); 28 (7/40); 0 (4/50);
169 KGB 5500 to 5598   (50 cars, even nos. only)
ORER description: Box, Stl. Und., Even Nos. AAR Mech. Designation: XM
Dimensions: 40'-6" IL x 9'-2" IW x 10'-0" IH Capacity: 3713 cu. ft.; 80000 lbs
Doors: 6'-0" W x 9'-5" H End doors (ft. in.) 1'-2" W x 0'-10" H
Comments: Built Western Steel Car & Foundry 1925.10. Composite single sheathed. Lumber doors on 'A' end of car. Identical to CM&StP 708500-713999, perhaps the GB&W's order was add to CM&StP's order. Large 'X' on door of some cars in 1930s, black & white herald on door in 1950s-60s. At least #5538 was painted bright red by 1968.
ORER car totals
& dates:
25 (7/40); 25 (4/50); 25 (4/52); 25 (1/55); 24 (1/60); 24 (10/62); 24 (4/64); 24 (1/65); 17 (4/66); 9 (7/67); 3 (4/69); 0 (1/70);
Photos: 5518   5538
170 KGB 7001 to 7039   (20 cars, odd nos. only)
ORER description: Hart Covertible, Odd Nos., Gond., Ballast AAR Mech. Designation: GH
Dimensions: 40'-0" IL x 9'-5" IW x 4'-4 1/2" IH Capacity: 1597 cu. ft.; 100000 lbs
Comments: Built Rogers 1924.04. Drop bottom gondola. Ex-Wisconsin & Michigan 2500- series. Originally painted black, old-style serif lettering; later years were yellow with black lettering.
ORER car totals
& dates:
20 (7/40); 20 (4/50); 20 (4/52); 20 (1/55); 20 (1/60); 9 (10/62); 9 (4/64); 9 (1/65); 9 (4/66); 9 (7/67); 9 (4/69); 9 (1/70); 9 (4/71); 9 (1/72); 9 (4/72); 9 (4/73); 0 (1/74);
Photos: 7023
171 KGB 7101 to 7199   (50 cars, odd nos. only)
ORER description: Gond., Odd Nos., Stl., Fixed Ends AAR Mech. Designation: GB
Dimensions: 38'-7 1/2" IL x 9'-3" IW x 4'-4" IH Capacity: 1547 cu. ft.; 115000 lbs
Comments: Built 1909-1913. Steel, 9 ribs, flat bottom, peaked ends. Ex-Norfolk & Western class GJ (#90000-#92599) cars built 1909-13, also Hocking Valley 4609-4647. N&W rebuilt these cars as class Gja and GJb in the early-mid 1920s. KGB&W apparently upgraded the cars sometime after delivery with new flat Dreadnaught ends, power brakewheels, and AB brakes. Acquired via Iron & Steel Products Co. in 1936.
ORER car totals
& dates:
50 (7/40); 50 (4/50); 12 (4/52); 13 (1/55); 7 (1/60); 4 (10/62); 2 (4/64); 0 (1/65);
172 KGB 7201 to 7202   (2 cars)
ORER description: Gond., Fixed Ends, Flat Bottom, Wood Flr. AAR Mech. Designation: GB
ORER Notes: Solid floor conversion of KGB 7001-7039 gondolas.
Dimensions: 39-11" IL x 9'-5" IW x 4'-3" IH Capacity: 1599 cu. ft.; 100000 lbs
Comments: Built 1924.04. Rebuilt 1961.05. Bright red, standard steam era freight car lettering in white.
ORER car totals
& dates:
0 (1/60); 2 (10/62); 2 (4/64); 1 (1/65); 0 (4/66);
173 KGB 031 to 630   (3 cars)
ORER description: Caboose AAR Mech. Designation: NE
Dimensions: Capacity:
Comments: Originally 030 - 032, renumbered 630 - 632.
ORER car totals
& dates:
3 (7/40); 2 (4/50); 2 (4/52); 2 (1/55); 2 (1/60); 2 (10/62); 2 (4/64); ? (1/65); 1 (4/66); 1 (7/67); 0 (4/69);
174 KGB X32 to X5054   (6 cars)
ORER description: Maint. of Way AAR Mech. Designation:
Dimensions: Capacity:
Comments:
ORER car totals
& dates:
4 (7/40); 6 (4/50); 6 (4/52); 6 (1/55); 5 (1/60); 5 (10/62); 4 (4/64); 0 (1/65); 1 (4/66); 1 (7/67); 0 (4/69);
175 KGB X190   (1 car)
ORER description: Ballast Spreader AAR Mech. Designation:
Dimensions: Capacity:
Comments: Built Jordan Jordan ballast spreader. Ex-W&M purchased about 1935, cost $5054. Used for ballast spreading, ditching and snow removal. To WC after 1993 (and CN after 2001), but kept GBW X190 reporting marks; renumbered CN 68533 in 2011.
ORER car totals
& dates:
Included in X032-X5054 totals. (7/40);
Photos: 190
176 KGB X501 to X511   (6 cars, odd nos. only)
ORER description: Western Air Dump AAR Mech. Designation: MWD
Dimensions: 26'-0" IL x 9'-2" IW x 1'-8" IH Capacity: 397 cu. ft.; 80000 lbs
Comments: Built Western Wheeled Scraper Co. 1925-1928. Ex-W&M
ORER car totals
& dates:
6 (7/40); 6 (4/50); 6 (4/52); 6 (1/55); 6 (1/60); 0 (10/62);
177 WRX 8000 to 8285   (286 cars)
ORER description: Refrig., All Stl. AAR Mech. Designation: RB
Dimensions: 40'-6" IL x 9'-2" IW x 8'-6" IH Capacity: 3156 cu. ft.; 88000 lbs
Doors: 6'-0" W x 7'-6" H
Comments:
ORER car totals
& dates:
0 (1/70); 286 (4/71); 0 (1/72);
178 WRX 9000 to 9999   (500 cars)
ORER description: Refrig., Stl. Und. AAR Mech. Designation: RS
ORER Notes: 10/62 - Cars numbered 9775, 9776 to 9799 and 9800 to 9850 are equipped with loading bulkheads.
Dimensions: 33'-2 5/8 IL x 8'-4 3/8" IW x 7'-5" 13/16" IH Capacity: 1970 cu. ft.; 80000 lbs
Doors: 4'-0" W x 6'-0" H
Comments: Built American Car & Foundry 1929. Originally WRX 9000-9499; construction cost over $3000 each. WRX 9010 (possibly others) assigned to service the Hamm's brewery in St. Paul by the 1960s.
ORER car totals
& dates:
435 (7/40); 417 (4/50); 400 (4/52); 400 (1/55); 350 (1/60); 249 (10/62); 204 (4/64); 183 (1/65); 166 (4/66); 135 (7/67); 36 (4/69); 35 (1/70); 34 (4/71); 15 (4/72); 5 (4/73); 5 (1/74); 5 (4/75); 1 (1/76); 1 (1/77); 0 (7/78);
Photos: 9010   9015   9047
179 WRX 9000 to 9014   (15 cars)
ORER description: Refrig., Stl., Roof Loading Hatches (Dry Blood Only) AAR Mech. Designation: RB
Dimensions: 40'-0" IL x 8'-4" IW x 7'-11" IH Capacity: 2638 cu. ft.; 86000 lbs
Doors: 8'-0" W x 7'-7" H
Comments: USRA double-sheathed boxcars built DT&I 11500-11799 in 1919 and rebuilt 1936 with 8-panel steel sides and an odd 16-panel radial roof. Rebuilt again with 8' plug doors and insulation circa 1957-58. They lasted on the DT&I until the late 1960s, then sold to WRX and LOVX. Assigned to Armour & Company dry blood service.
ORER car totals
& dates:
0 (4/72); 1 (4/73); 6 (1/74); 14 (4/75); 14 (1/76); 15 (1/77); 15 (7/78); 15 (1/79); 15 (1/80); 14 (1/81); 14 (1/82); 15 (1/83); 9 (1/84); 0 (1/86);
Photos: 9001
180 WRX 9000 to 9001   (2 cars)
ORER description: Refrig., All Stl. AAR Mech. Designation: RB
Dimensions: 50'-1" IL x 9'-1" IW x 9'-7" IH Capacity: 4359 cu. ft.; 110000 lbs
Doors: 10'-0" W x 9'-4" H
Comments:
ORER car totals
& dates:
0 (4/69); 2 (1/70); 2 (4/71); 0 (1/72);
181 WRX 9002 to 9006   (5 cars)
ORER description: Refrig., All Stl. AAR Mech. Designation: RB
Dimensions: 50'-0" IL x 9'-0" IW x 9'-1" IH Capacity: 4055 cu. ft.; 110000 lbs
Doors: 10'-0" W x 8'-9" H
Comments:
ORER car totals
& dates:
0 (4/69); 5 (1/70); 5 (4/71); 0 (1/72);
182 WRX 9015   (1 car)
ORER description: Refrig., Stl., Ventilators A & B Ends AAR Mech. Designation: RB
Dimensions: 40'-6" IL x 9'-2" IW x 8'-6" IH Capacity: 3156 cu. ft.; 88000 lbs
Doors: 6'-0" W x 7'-6" H
Comments:
ORER car totals
& dates:
0 (1/76); 1 (1/77); 1 (7/78); 1 (1/79); 1 (1/80); 1 (1/81); 1 (1/82); 1 (1/83); 1 (1/84); 0 (1/86);
183 WRX 9169 , 9398   (2 cars)
ORER description: Refrig., Stl. Und. AAR Mech. Designation: RS
ORER Notes: Cars numbered 9169 and 9398 have 4 1/2 in. insulation.
Dimensions: 33'-2 5/8 IL x 8'-4 3/8" IW x 7'-5" 13/16" IH Capacity: 1970 cu. ft.; 80000 lbs
Doors: 5'-0" W x 6'-0" H
Comments:
ORER car totals
& dates:
0 (1/55); 2 (1/60); 0 (10/62);
184 WRX 9300 to 9303   (4 cars)
ORER description: Refrig., All Stl. AAR Mech. Designation: RBL
ORER Notes: Cars in series 9300 to 9303 have 4 inches side and end insulation, 5 inches floor and ceiling insulation and are equipped with loading bulkheads.
Dimensions: 40'-0" IL x 8'-5" IW x 8'-0" IH Capacity: 2659 cu. ft.; 100000 lbs
Doors: 8'-0" W x 7'-2" H
Comments: Reassigned to GBW (1/72)
ORER car totals
& dates:
0 (10/62); 4 (4/64); 4 (1/65); 4 (4/66); 4 (7/67); 4 (4/69); 4 (1/70); 4 (4/71); 4 (1/72); 4 (4/72); 4 (4/73); 4 (1/74); 4 (4/75); 4 (1/76); 3 (1/77); 3 (7/78); 3 (1/79); 3 (1/80); 3 (1/81); 0 (1/82);
185 WRX 9350 , 9351   (2 cars)
ORER description: Refrig., All Stl. AAR Mech. Designation: RBL
Dimensions: 51'-1 7/8" IL x 9'-3" IW x 10'-3 1/2 IH Capacity: 4870 cu. ft.; 154000 lbs
Doors: 10'-6" W x 9'-10 1/2" H
Comments: Built FGE 50' Fruit Growers Express insulated boxcar To GBW 22090-22091 in 1972.
ORER car totals
& dates:
0 (7/67); 2 (4/69); 2 (1/70); 2 (4/71); 0 (1/72);
Photos: 9350   9350
186 WRX 9400 to 9452   (42 cars)
ORER description: Refrig., All Stl. AAR Mech. Designation: RB
Dimensions: 40'-0" IL x 8'-4" IW x 7'-11" IH Capacity: 2638 cu. ft.; 86000 lbs
Doors: 8'-0" W x 7'-7" H
Comments: Plug doors. A few cars numbered 9200-9218 in 1975+. 9201 (perhaps others) lettered for FRESHLIKE with routing instructions WHEN EMPTY RETURN TO AGENT CNW RR THE LARSEN CO GREEN BAY WIS
ORER car totals
& dates:
0 (7/67); 35 (4/69); 37 (1/70); 34 (4/71); ? (1/72); 39 (4/72); 38 (4/73); 33 (1/74); 25 (4/75); 25 (1/76); 25 (1/77); 25 (7/78); 27 (1/79); 27 (1/80); 42 (1/81); 42 (1/82); 11 (1/83); 0 (1/84);
Photos: 9412
187 WRX 9500 to 9525   (22 cars)
ORER description: Refrig., Stl. Und. AAR Mech. Designation: RS
Dimensions: 33'-2 5/8 IL x 8'-4 3/8" IW x 7'-5" 13/16" IH Capacity: 1970 cu. ft.; 80000 lbs
Doors: 5'-0" W x 6'-0" H
Comments:
ORER car totals
& dates:
0 (1/55); 4 (1/60); 8 (10/62); 16 (4/64); 20 (1/65); 22 (4/66); 21 (7/67); 20 (4/69); 20 (1/70); 15 (4/71); ? (1/72); 5 (4/72); 0 (4/73);
188 WRX 9550 to 9574   (11 cars)
ORER description: AAR Mech. Designation: RB
Dimensions: 38'-0" IL x 8'-5" IW x 7'-5" IH Capacity: 2372 cu. ft.; 80000 lbs
Doors: 5'-0" W x 6'-6" H
Comments: 9550-9574 cars were rebuilt without ice bunkers in later years
ORER car totals
& dates:
0 (10/62); 3 (4/64); 3 (1/65); 3 (4/66); 5 (7/67); 9 (4/69); 10 (1/70); 11 (4/71); ? (1/72); 9 (4/72); 1 (4/73); 1 (1/74); 1 (4/75); 0 (1/76);
189 WRX 9550 to 9574   (11 cars)
ORER description: Refrig., Stl. Und. AAR Mech. Designation: RS
ORER Notes: Cars numbered 9553 and 9554 have 4 1/2 in. insulation.
Dimensions: 33'-2 5/8 IL x 8'-4 3/8" IW x 7'-5" 13/16" IH Capacity: 1970 cu. ft.; 80000 lbs
Doors: 5'-0" W x 6'-6" H
Comments:
ORER car totals
& dates:
0 (1/60); 11 (10/62); 8 (4/64); 6 (1/65); 4 (4/66); 1 (7/67); 0 (4/69);
190 WRX 9620 to 9646   (27 cars)
ORER description: Refrig., All Stl. AAR Mech. Designation: RB
ORER Notes: Cars numbered 9620 to 9649 are equipped with corrugated board dunnage, pallets, platforms or skids, which will be considered part of the equipment of the car.
Dimensions: 40'-0" IL x 8'-4" IW x 7'-11" IH Capacity: 2638 cu. ft.; 86000 lbs
Doors: 8'-0" W x 7'-7" H
Comments: USRA double-sheathed boxcars built DT&I 11500-11799 in 1919 and rebuilt 1936 with 8-panel steel sides and an odd 16-panel radial roof. Rebuilt again with 8' plug doors and insulation circa 1954. They lasted on the DT&I until the late 1960s, then sold to WRX and LOVX. (Other all-steel WRX cars with similar 7'-11" inside height are likely from this same source.) #9620, 9621, 9642, 9653 lettered for International Milling, perhaps others.
ORER car totals
& dates:
0 (7/67); 27 (4/69); 27 (1/70); 27 (4/71); ? (1/72); 21 (4/72); 21 (4/73); 21 (1/74); 21 (4/75); 21 (1/76); 20 (1/77); 16 (7/78); 14 (1/79); 14 (1/80); 17 (1/81); 17 (1/82); 17 (1/83); 0 (1/84);
191 WRX 9649   (1 car)
ORER description: Refrig., All Stl. AAR Mech. Designation: RB
ORER Notes: Cars in series 964950 to 9699 are equipped with ventilators A and B ends.
Dimensions: 40'-6" IL x 9'-2" IW x 8'-6" IH Capacity: 3156 cu. ft.; 88000 lbs
Doors: 6'-0" W x 7'-6" H
Comments:
ORER car totals
& dates:
0 (4/66); 1 (7/67); 1 (4/69); 1 (1/70); 1 (4/71); 1 (1/72); 1 (4/72); 1 (4/73); 1 (1/74); 1 (4/75); 1 (1/76); 0 (1/77);
192 WRX 9650 to 9699   (29 cars)
ORER description: Refrig., Stl. Und. AAR Mech. Designation: RB
ORER Notes: Cars in series 9650 to 9699 and 9988 to 9999 are equipped with ventilators A and B ends.
Dimensions: 38'-0" IL x 8'-5" IW x 7'-5" IH Capacity: 2372 cu. ft.; 80000 lbs
Doors: 5'-2" W x 7'-0" H
Comments: WRX 9660 lettered for International Milling.
ORER car totals
& dates:
0 (1/60); 15 (10/62); 20 (4/64); 22 (1/65); 24 (4/66); 29 (7/67); 28 (4/69); 28 (1/70); 26 (4/71); ? (1/72); 23 (4/72); 6 (4/73); 5 (1/74); 5 (4/75); 0 (1/76);
Photos: 9670
193 WRX 9700 to 9714   (15 cars)
ORER description: Refrig., Stl. Und. AAR Mech. Designation: RB
ORER Notes: Cars in series 9700, 9701, and 9703 to 9714 have 4 1/2 in. insulation and are equipped with tri-belts.
Dimensions: 38'-2" IL x 8'-5" IW x 7'-5" 1/2" IH Capacity: 2396 cu. ft.; 80000 lbs
Doors: 5'-0" W x 6'-6" H
Comments:
ORER car totals
& dates:
0 (1/55); 15 (1/60); 14 (10/62); 0 (4/64);
194 WRX 9701 to 9717   (17 cars)
ORER description: Refrig., Stl. AAR Mech. Designation: RB
Dimensions: 40'-0" IL x 9'-2" IW x 9'-4" IH Capacity: 3445 cu. ft.; 110000 lbs
Doors: 8'-2" W x 8'-11" H
Comments: Built Pacific Car & Foundry Co. 1960. 1960 Pacific Car 40 ft., 50-ton insulated box cars Former Youngstown and Southern Ry YS 60626-60641, 60643, acquired 1980.
ORER car totals
& dates:
0 (1/83); 11 (1/84); 11 (1/86); 11 (1/87); 11 (1/88); 11 (1/89); 11 (1/90); 0 (4/91);
195 WRX 9702   (1 car)
ORER description: Refrig., All Stl. AAR Mech. Designation: RBL
ORER Notes: Car numbered 9702 has 6 in. insulation and is equipped with Evans Loading Device.
Dimensions: 38'-2" IL x 8'-5" IW x 7'-5" 1/2" IH Capacity: 2396 cu. ft.; 80000 lbs
Doors: 6'-0" W x 7'-2" H
Comments:
ORER car totals
& dates:
0 (1/60); 1 (10/62); 0 (4/64);
196 WRX 9725 , 9726   (2 cars)
ORER description: Refrig., Stl. Und. AAR Mech. Designation: RS
ORER Notes: Cars numbered 9725 and 9726 have 4 1/2 in. insulation and are equipped with tri-belts.
Dimensions: 33'-2 5/8 IL x 8'-4 5/8" IW x 7'-5" 13/16" IH Capacity: 1970 cu. ft.; 78000 lbs
Doors: 5'-0" W x 6'-0" H
Comments:
ORER car totals
& dates:
0 (1/60); 2 (10/62); 1 (4/64); 0 (1/65);
197 WRX 9773 to 9774   (2 cars)
ORER description: Refrig., Stl. Und. AAR Mech. Designation: RBL
ORER Notes: Cars numbered 9773 to 9799 are equipped with loading bulkheads.
Dimensions: 38'-0" IL x 8'-5" IW x 7'-5" IH Capacity: 2372 cu. ft.; 80000 lbs
Doors: 5'-2" W x 7'-0" H
Comments:
ORER car totals
& dates:
0 (1/70); 2 (4/71); 2 (1/72); 2 (4/72); 0 (4/73);
198 WRX 9775   (1 car)
ORER description: Refrig., Stl. Und. AAR Mech. Designation: RBL
ORER Notes: Cars numbered 9775, 9776 to 9799 and 9800 to 9850 are equipped with loading bulkheads.
Dimensions: 38'-0" IL x 8'-5" IW x 7'-5" IH Capacity: 2372 cu. ft.; 80000 lbs
Doors: 4'-0" W x 6'-6" H
Comments:
ORER car totals
& dates:
0 (4/66); 1 (7/67); 1 (4/69); 1 (1/70); 1 (4/71); 0 (1/72);
199 WRX 9776 to 9799   (24 cars)
ORER description: Refrig., Stl. Und. AAR Mech. Designation: RBL
ORER Notes: Cars numbered 9775, 9776 to 9799 and 9800 to 9850 are equipped with loading bulkheads.
Dimensions: 38'-0" IL x 8'-5" IW x 7'-5" IH Capacity: 2372 cu. ft.; 80000 lbs
Doors: 5'-0" W x 7'-0" H
Comments:
ORER car totals
& dates:
0 (1/60); 10 (10/62); 15 (4/64); 18 (1/65); 18 (4/66); 19 (7/67); 20 (4/69); 23 (1/70); 24 (4/71); ? (1/72); 17 (4/72); 1 (4/73); 1 (1/74); 1 (4/75); 0 (1/76);
Photos: 9785
200 WRX 9800 to 9850   (12 cars)
ORER description: Refrig., Stl. Und. AAR Mech. Designation: RBL
ORER Notes: Cars numbered 9775, 9776 to 9799 and 9800 to 9850 are equipped with loading bulkheads.
Dimensions: 38'-0" IL x 8'-5" IW x 7'-5" IH Capacity: 2372 cu. ft.; 80000 lbs
Doors: 5'-2" W x 7'-0" H
Comments:
ORER car totals
& dates:
0 (1/60); 12 (10/62); 12 (4/64); 12 (1/65); 12 (4/66); 11 (7/67); 8 (4/69); 5 (1/70); 0 (4/71);
201 WRX 9800   (1 car)
ORER description: Refrig., All Stl. AAR Mech. Designation: RP
ORER Notes: Car numbered 9800 is a general purpose mechanical refrigerator car.
Dimensions: 50'-4" IL x 8'-7" IW x 7'-11" IH Capacity: 3415 cu. ft.; 108000 lbs
Doors: 8'-0" W x 7'-7" H
Comments:
ORER car totals
& dates:
0 (1/70); 1 (4/71); 1 (1/72); 1 (4/72); 1 (4/73); 1 (1/74); 1 (4/75); 1 (1/76); 1 (1/77); 1 (7/78); 1 (1/79); 0 (1/80);
202 WRX 9900 to 9950   (11 cars)
ORER description: Refrig., Stl. Und. AAR Mech. Designation: RB
Dimensions: 38'-0" IL x 8'-5" IW x 7'-5" IH Capacity: 2372 cu. ft.; 80000 lbs
Doors: 5'-2" W x 7'-0" H
Comments:
ORER car totals
& dates:
0 (1/60); 10 (10/62); 11 (4/64); 10 (1/65); 9 (4/66); 6 (7/67); 2 (4/69); 1 (1/70); 0 (4/71);
203 WRX 9988 to 9999   (12 cars)
ORER description: Refrig., Stl. Und. AAR Mech. Designation: RB
ORER Notes: Cars in series 9650 to 9699 and 9988 to 9999 are equipped with ventilators A and B ends.
Dimensions: 38'-0" IL x 8'-5" IW x 7'-5" IH Capacity: 2372 cu. ft.; 80000 lbs
Doors: 5'-2" W x 7'-0" H
Comments:
ORER car totals
& dates:
0 (1/60); 12 (10/62); 12 (4/64); 11 (1/65); 7 (4/66); 0 (7/67);
204 WRX 10000 to 10999   (65 cars)
ORER description: Refrig., Stl. Und. AAR Mech. Designation: RS
ORER Notes: Cars in this series not equipped with permanent false floors.
Dimensions: 33'-2 5/8 IL x 8'-4 3/8" IW x 7'-5" 13/16" IH Capacity: 1970 cu. ft.; 80000 lbs
Doors: 4'-0" W x 6'-0" H
Comments:
ORER car totals
& dates:
65 (7/40); 63 (4/50); 0 (1/55);
205 WRX 11000 to 11100   (1 car)
ORER description: Refrig., Stl. Und. AAR Mech. Designation: RS
ORER Notes: Cars in this series not equipped with permanent false floors.
Dimensions: 30'-6" IL x 8'-2" IW x 7'-1 1/2" IH Capacity: 1809 cu. ft.; 60000 lbs
Doors: 4'-0" W x 6'-0" H
Comments:
ORER car totals
& dates:
0 (7/40); 1 (4/50); 0 (1/55);
206 WRX 11525   (1 car)
ORER description: AAR Mech. Designation:
Dimensions: Capacity: 0 lbs
Comments: Wood sides; gray sides, boxcar red roof and ends; multi-color Hamilton & Sons. Canning Co. billboard lettering.
ORER car totals
& dates:
Photos: 11525
207 WRX 11981   (1 car)
ORER description: AAR Mech. Designation:
Dimensions: Capacity: 0 lbs
Comments: Wood sides; gray sides, boxcar red roof and ends; multi-color Marty Cheese billboard lettering.
ORER car totals
& dates:


[ Top of This Page


 The Green Bay Route is maintained by Mark Mathu.
Visit the Guest Book or send comments to mark@mathu.com.
Updated April 21, 2015

[ Top of This Page


 The Green Bay Route is maintained by Mark Mathu.
Visit the Guest Book or send comments to mark@mathu.com.
Updated July 11, 2015
