Craig Wilson modeled a unique Green Bay & Western 40' boxcar which is not available as a commercial model.


GBW/MILW 40' PS-1 Boxcar with 9' Door from E&C Shops Kit
by Craig Wilson

Table of Contents
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6

Page 5 of 6:
Add roofwalks.

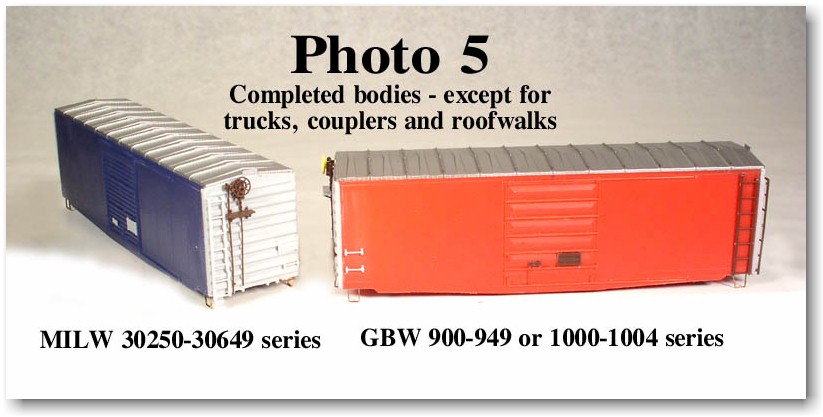

Photo 5

The bodies are shown with the details attached and ready for painting. The roofwalks will be painted separately and installed later. For the MILW car, I used a Kadee 40-foot roofwalk. I drilled out the mounting holes (except for the pins under the laterals which I trimmed off), and test fit it to the body before painting. For the GBW car, I used a spare Intermountain Railway 40-foot boxcar roofwalk so that it would match the other GBW cars that I had done earlier. (The Kadee roofwalks were not available when I kitbashed the others, and I didn't want to go back and retrofit them.)
