KGBW 350 / GBW 351

Up ]

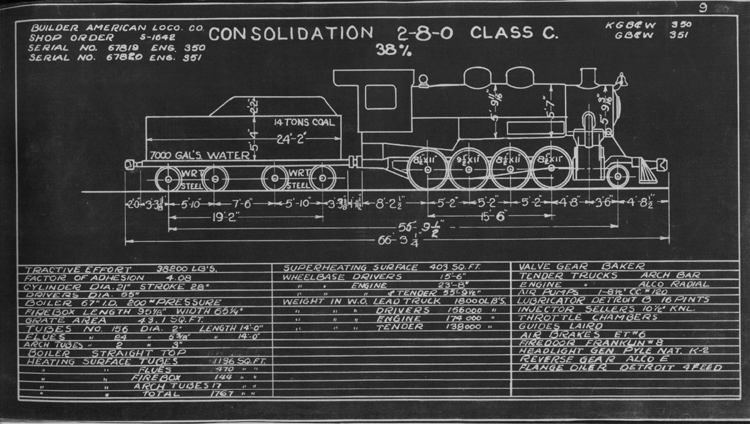

Green Bay & Western Lines 1947 Locomotive & Equipment Diagrams




Next ]  [ Index ]

BUILDER AMERICAN LOCO CO.
SHOP ORDER S-1642
SERIAL NO. 67819 ENG. 350
SERIAL NO. 67820 ENG. 351
CONSOLIDATION 2-8-0 CLASS C.
38%
KGB&W 350
GB&W 351

From the collection of Andy Laurent.
TRACTIVE EFFORT 38,200 LB'S. SUPERHEATING SURFACE AREA 403 SQ.FT. VALVE GEAR BAKER
FACTOR OF ADHESION 4.08 WHEELBASE DRIVERS 15'-6" TENDER TRUCKS ARCH BAR
CYLINDER DIA. 21" STROKE 28" WHEELBASE ENGINE 23'-8" ENGINE TRUCKS ALCO RADIAL
DRIVER DIA. 55" WHEELBASE ENGINE & TENDER 55'-9 1/2" AIR PUMPS 1-8�" CC #120
BOILER 67" I.D. 200# PRESSURE WEIGHT IN W.O. LEAD TRUCK 18000 LB'S. LUBRICATOR DETROIT B 16 PINTS
FIREBOX LENGTH 95 1/8" WIDTH 65 1/4" WEIGHT IN W.O. DRIVERS 156000 LB'S. INJECTOR SELLERS 10 1/2" KNL.
GRATE AREA 43.1 SQ.FT. WEIGHT IN W.O. ENGINE 174000 LB'S. THROTTLE CHAMBERS
TUBES NO. 156 DIA. 2" LENGTH 14'-0" WEIGHT IN W.O. TENDER 138000 LB'S. GUIDES LAIRD
FLUES NO. 24 DIA. 5 3/8" LENGTH 14'-0"   AIR BRAKES ET #6
ARCH TUBES NO. 2 DIA. 3"   FIREDOOR FRANKLIN #8
BOILER STRAIGHT TOP   HEADLIGHT GEN. PYLE NAT. K-2
HEATING SURFACE TUBES 1136 SQ.FT.   REVERSE GEAR ALCO E
HEATING SURFACE FLUES 470 SQ.FT.   FLANGE OILER DETROIT 4 FEED
HEATING SURFACE FIREBOX 144 SQ.FT.
HEATING SURFACE ARCH TUBES 17 SQ.FT.
HEATING SURFACE TOTAL 1767 SQ.FT.
