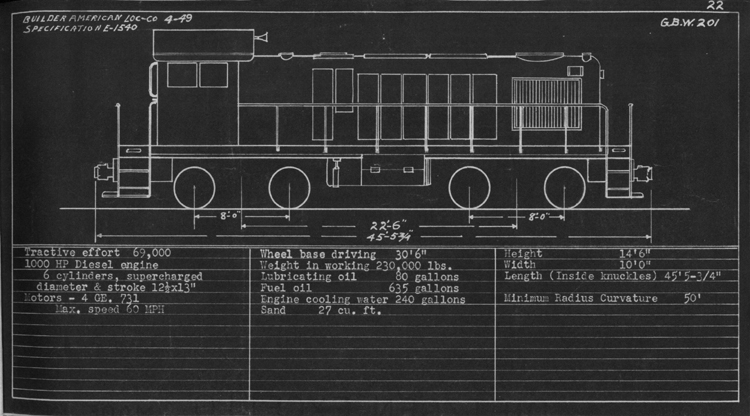

Green Bay & Western Lines 1947 Locomotive & Equipment Diagrams


Back ] Next ]  [ Index ]

BUILDER AMERICAN LOCO CO. 4-49
SPECIFICATION E-1540
G.B.W. 201

From the collection of Andy Laurent.
Tractive effort 69,000 Wheelbase driving 30'6" Height 14'6"
1000 HP Diesel engine Weight in working order 230,000 lbs. Width 10'0"
6 cylinders, supercharged Lubricating oil 80 gallons Length (Inside knuckles) 45'-5 3/4"
diameter & stroke 12�"x13" Fuel oil 635 gallons
Motors - 4 GE. 731 Engine cooling water 240 gallons Minimum Radius Curvature 50'
Max. speed 60 MPH Sand 27 cu.ft.
