GBW 8100- / KGB 5500-

Up ]

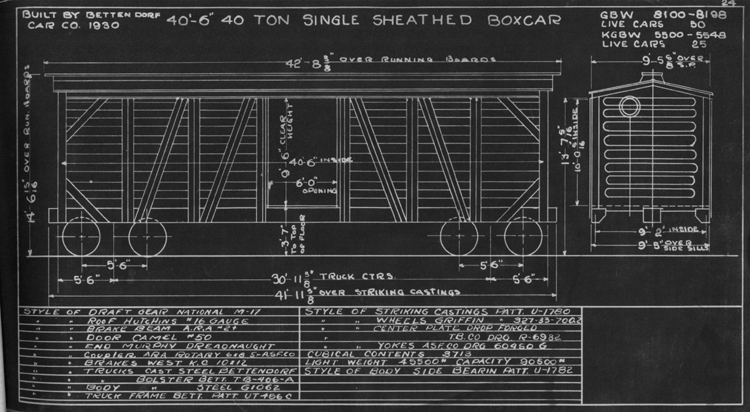

Green Bay & Western Lines 1947 Locomotive & Equipment Diagrams


Back ] Next ]  [ Index ]

BUILT BY BETTENDORF
CAR CO. 1930
40'-6" 40 TON SINGLE SHEATHED BOXCAR GBW 8100-8198
LIVE CARS 50
KGB 5500-5548
LIVE CARS 25

From the collection of Andy Laurent.
STYLE OF DRAFT GEAR NATIONAL M-17 STYLE OF STRIKING CASTINGS PATT. U-1780
STYLE OF ROOF HUTCHINS #16 GAUGE STYLE OF WHEELS GRIFFIN PATT. 327-33-700.2
STYLE OF BRAKE BEAMS ARA #2+ STYLE OF CENTER PLATE DROP FORGED
STYLE OF DOOR CAMEL #50 T.B. CO. DRG. R-6932
STYLE OF END MURPHY DREADNAUGHT STYLE OF YOKES A.S.F. CO. DRG. 60450 G
STYLE OF COUPLER ARA ROTARY 6x8 S.-A.S.F. CO STYLE OF BODY SIDE BEARING BATT. U-1782
STYLE OF BRAKES WEST KC 10x12 CUBICAL CAPACITY 3713
STYLE OF TRUCKS CAST STEEL BETTENDORF LIGHT WEIGHT 45500# CAPACITY 90500#
STYLE OF TRUCKS BOLSTER TB 406-A STYLE OF BODY SIDE BEARIN PATT. U-1782
STYLE OF BODY BOLSTER STEEL G1062
STYLE OF TRUCK FRAME BETT. PATT. UT 456 C
