Green Bay & Western Lines 1947 Locomotive & Equipment Diagrams


KGBW #398 was originally numbered #45 and was sold to the Ahnapee & Western in February 1949.

 [ Index ]

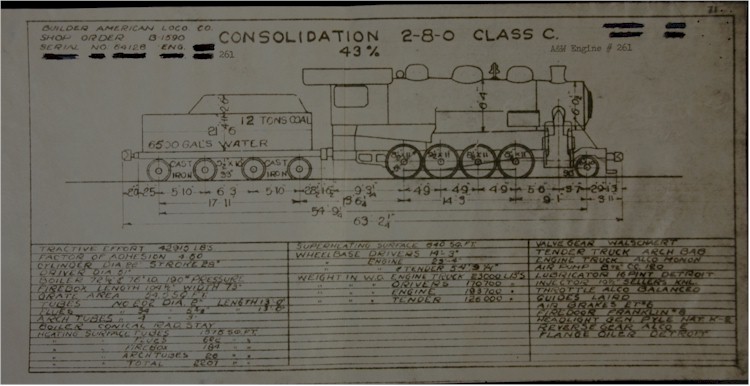

BUILDER AMERICAN LOCO CO.
SHOP ORDER B-1590
SERIAL NUMBER 64128
261
CONSOLIDATION 2-8-0 CLASS C
43%

A&W ENGINE #261

From the collection of Andy Laurent.
TRACTIVE EFFORT 42,915 LB'S. SUPERHEATING SURFACE AREA 540 SQ.FT. VALVE GEAR WALSCHAERT
FACTOR OF ADHESION 4.50 WHEELBASE DRIVERS 14'-3" TENDER TRUCKS ARCH BAR
CYLINDER DIA. 22" STROKE 28" WHEELBASE ENGINE 23'-4" ENGINE TRUCK ALCO MONON
DRIVER DIA. 51" WHEELBASE ENGINE & TENDER 54'-9 1/4" AIR PUMPS 8-8�" CC #120
BOILER 72� & 76" I.D. 190# PRESSURE WEIGHT IN W.O. ENGINE TRUCK 23000 LB'S. LUBRICATOR 16 PINT DETROIT
FIREBOX LENGTH 104�" WIDTH 73" WEIGHT IN W.O. DRIVERS 170700 LB'S. INJECTOR 10 1/2" SELLERS KNL.
GRATE AREA 54.5 SQ.FT. WEIGHT IN W.O. ENGINE 193700 LB'S. THROTTLE ALCO BALANCED
TUBES NO. 202 DIA. 2" LENGTH 13'-0" WEIGHT IN W.O. TENDER 126000 LB'S. GUIDES LAIRD
FLUES NO. 34 DIA. 5 3/8" LENGTH 13'-0"   AIR BRAKES ET #6
ARCH TUBES NO. 4 DIA. 3"   FIREDOOR FRANKLIN #8
BOILER CONICAL RAD. STAY   HEADLIGHT GEN. PYLE NAT. K-2
HEATING SURFACE TUBES 1975 SQ.FT.   REVERSE GEAR ALCO E
HEATING SURFACE FLUES 622 SQ.FT.   FLANGE OILER DETROIT
HEATING SURFACE FIREBOX 184 SQ.FT.
HEATING SURFACE ARCH TUBES 26 SQ.FT.
HEATING SURFACE TOTAL 2207 SQ.FT.
