GBW 602- / KGBW 630- / AW 620

Up ]

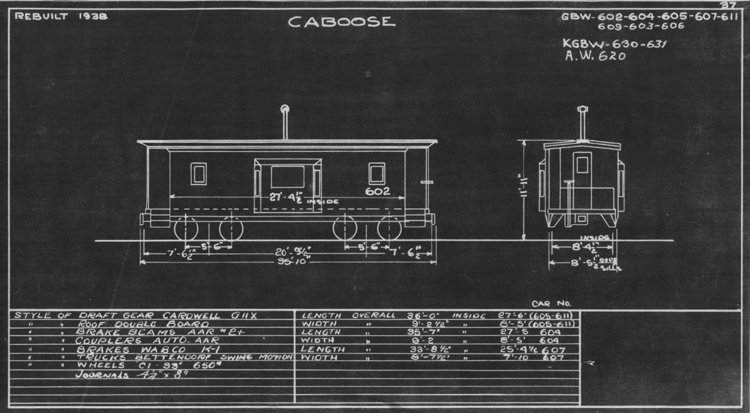

Green Bay & Western Lines 1947 Locomotive & Equipment Diagrams


A&W caboose 620 (later #33) is preserved at the National Railroad Museum in Green Bay, Wis.

 [ Index ]

REBUILT 1938 CABOOSE GBW 602-604-605-607-611
609-603-606
KGBW 630-631
A.W. 620

From the collection of Andy Laurent.
STYLE OF DRAFT GEAR CARDWELL G11X LENGTH OVERALL 36'-0" INSIDE 27'-6" (605-611)
STYLE OF ROOF DOUBLE BOARD WIDTH OVERALL 9'-2 1/2" INSIDE 8'-5" (605-611)
STYLE OF BRAKE BEAMS AAR #2+ LENGTH OVERALL 35'-7" INSIDE 27'-5" (604)
STYLE OF COUPLERS AUTO AAR WIDTH OVERALL 9'-2" INSIDE 8'-5" (604)
STYLE OF BRAKES WABCO K-1 LENGTH OVERALL 33'-8 1/2" INSIDE 25'-4 1/2" (607)
STYLE OF TRUCKS BETTENDORF SWING MOTION WIDTH OVERALL 8'-7 1/2" INSIDE 7'-10" (607)
STYLE OF WHEELS CI 33" 650#
STYLE OF JOURNALS 4 1/4" X 8"
