Green Bay & Western Lines 1947 Locomotive & Equipment Diagrams


 [ Index ]

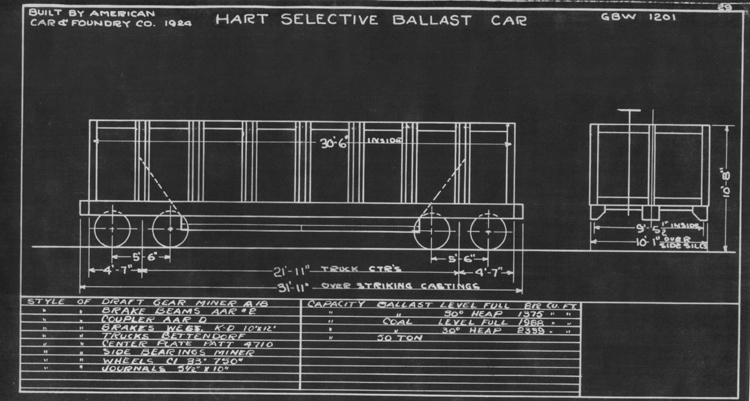

BUILT BY AMERICAN
CAR & FOUNDRY CO. 1924
HART SELECTIVE BALLAST CAR GBW 1201

From the collection of Andy Laurent.
STYLE OF DRAFT GEAR MINER A18 CAPACITY BALLAST LEVEL FULL 812 CU. FT.
STYLE OF BRAKE BEAMS AAR #2 CAPACITY BALLAST 20° HEAP 1375 CU. FT.
STYLE OF COUPLERS AAR D CAPACITY COAL LEVEL FULL 1988 CU. FT.
STYLE OF BRAKES WEST K-D 10" X 12" CAPACITY COAL 30° HEAP 2339 CU. FT.
STYLE OF TRUCKS BETTENDORF CAPACITY 50 TON
STYLE OF CENTER PLATE PATT 4710
STYLE OF SIDE BEARINGS MINER
STYLE OF WHEELS CI 33" 750#
STYLE OF JOURNALS 5 1/2" X 10"
