GBW 4801- / KGB 4501-

Up ]



Green Bay & Western Lines 1947 Locomotive & Equipment Diagrams


 [ Index ]

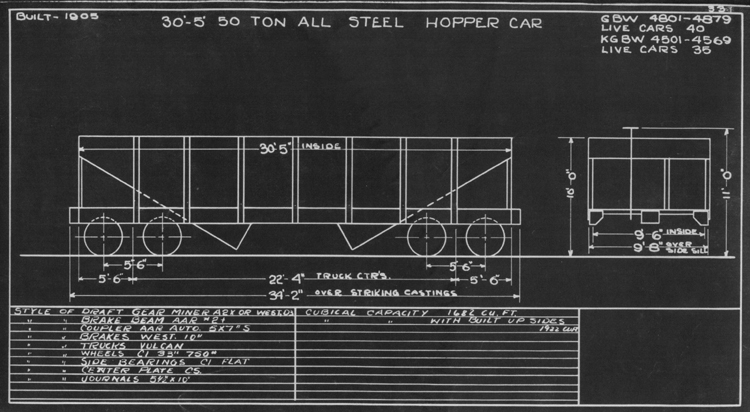

BUILT 1905 30'-5" 50 TON ALL-STEEL HOPPER CAR GBW 4801-4879
LIVE CARS 40
KGB 4501-4569
LIVE CARS 35

From the collection of Andy Laurent.
STYLE OF DRAFT GEAR MINER A2X OR WEST. D3 CUBICAL CAPACITY 1682 CU FT
STYLE OF BRAKE GEAR AAR #2+ CUBICAL CAPACITY WITH BUILT UP SIDES 1922 CU FT
STYLE OF COUPLER AAR AUTO 5x7" S
STYLE OF BRAKES WEST. 10"
STYLE OF TRUCKS VULCAN
STYLE OF WHEEL CI 33" 750#
STYLE OF SIDE BEARINGS CI FLAT
STYLE OF CENTER PLATE CS
STYLE OF JOURNALS 5 1/2 X 10"
