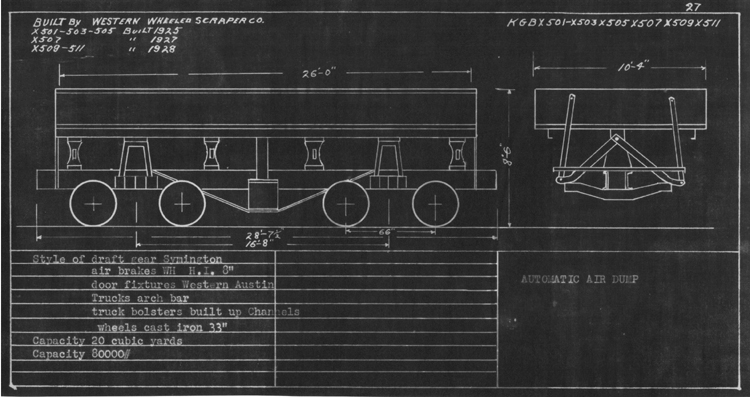

Green Bay & Western Lines 1947 Locomotive & Equipment Diagrams


 [ Index ]

BUILT BY WESTERN WHEELED SCRAPER CO.
X501 - 503 - 505 BUILT 1925
X507 BUILT 1927
X509 - 511 BUILT 1928
KGB X501-X503 X505 X507 X509 X511

From the collection of Andy Laurent.
Style of draft gear Symington   AUTOMATIC AIR DUMP
Style of air brakes WH H.I. 8"
Style of door fixtures Western Austin
Style of trucks arch bar
Style of truck bolsters built up channels
Style of wheels cast iron 33"
Capacity 20 cubic yards
Capacity 80000#
