Green Bay & Western Lines 1947 Locomotive & Equipment Diagrams


 [ Index ]

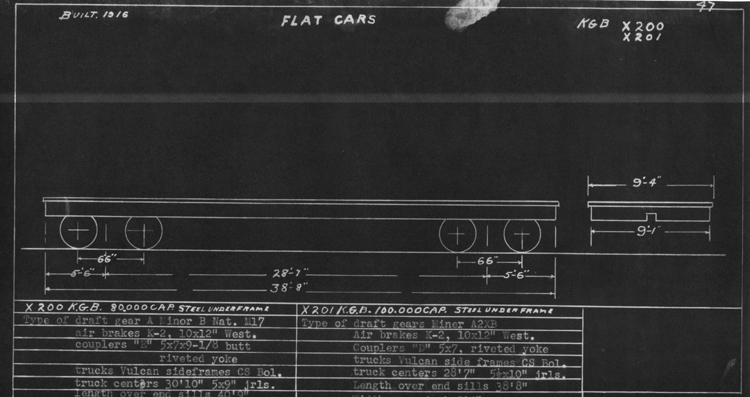

BUILT 1916 FLAT CARS KGB X200
X201

From the collection of Andy Laurent.
X200 K.G.B. 80,000 CAP. STEEL UNDERFRAME X201 K.G.B. 100,000 CAP. STEEL UNDERFRAME
Type of draft gear A Minor B Nat. M17 Type of draft gears Miner A2XB
Type of air brakes K-2, 10x12" West. Type of air brakes K-2, 10x12" West.
Type of couplers "E" 5x7x9-1/8 butt Type of couplers "D" 5x7, riveted yoke
riveted yoke Type of trucks Vulcan sideframes CS Bol.
Type of trucks Vulcan sideframes CS Bol. Truck centers 28'-7" 5 1/2x9" journals
Truck centers 30'-10" 5x9" journals Length over end sills 38'-8"
Length over end sills 40'-9" Width over deck 9'-4"
Length over side deck 8'-9"
